"LS-5560X-54S-EI-GL" จำหน่าย H3C S5560X Switch รุ่น "LS-5560X-54S-EI-GL" ราคาพร้อมติดตั้ง

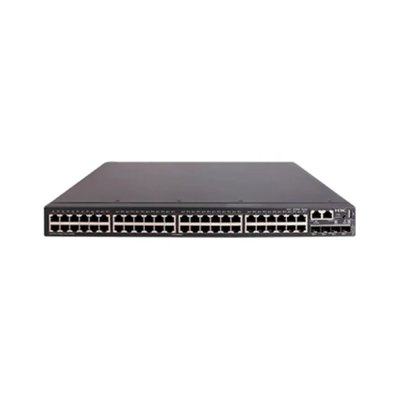

H3C LS-5560X-54S-EI-GL Specifications
General Features:
Product Type: Managed Switch
Model Name: LS-5560X-54S-EI-GL
Form Factor: Rack-mounted
Power Supply: AC power supply
Port Configuration:
Ethernet Ports:48 x 10/100/1000BASE-T (RJ45)
Uplink Ports:6 x 10G SFP+ (for high-speed uplinks)
Performance:
Switching Capacity: Up to 176 Gbps
Forwarding Rate: Up to 130 Mpps (Million packets per second)
Layer Support:
Layer: Layer 2 and Layer 3
Supported Protocols:VLAN, STP, RSTP, MSTP
OSPF, BGP, RIP
Quality of Service (QoS):
Traffic Classification: Support for multiple queues per port
Traffic Shaping: Rate limiting for traffic management
Security Features:
Access Control Lists (ACLs): For traffic filtering and security
DHCP Snooping: To prevent unauthorized DHCP servers
Management Features:
Management Protocols: SNMP, RMON, SSH, Telnet
Web-based Management: User-friendly GUI for configuration
Environmental Specifications:
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10% to 90% (non-condensing)
Physical Specifications:
Dimensions: 44.5 cm x 43.3 cm x 4.4 cm (1U)
Weight: Approximately 4.5 kg
Additional Features:
Redundant Power Supply: Optional for increased reliability
Fanless Design: Low noise operation
