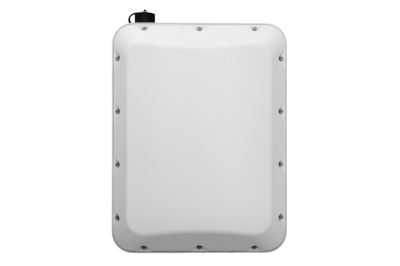

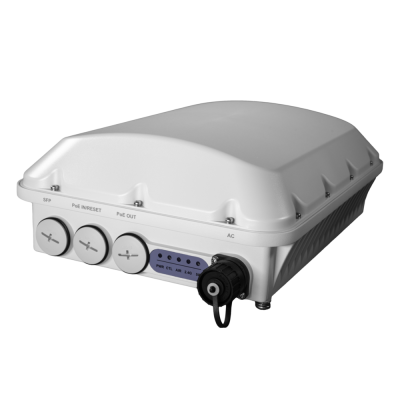

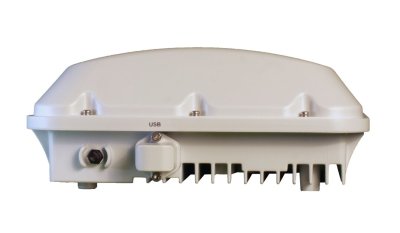

"T750 Outdoor" Ruckus T750 Outdoor Access Point Wi-Fi 6 802.11ax Dual-Band 4x4:4 MU-MIMO 3.548 Gbps 1024 Clients 2.5GbE + SFP/SFP+ Backhaul
SKU : T750
จำนวน
คำอธิบายสินค้าแบบย่อ
Very High-Performance Wi-Fi 6 4x4:4 Outdoor Access Point with 3.5 Gbps max rate
แบรนด์: RUCKUS
รายละเอียดสินค้า
ข้อมูลทางเทคนิค (Specifications)
| Product Identification | |
| SKU / Model | T750 Series - Variants: T750 (Standard Omnidirectional) + T750SE (120° Sector + External Antenna Capable) - ต้องระบุ GPS Option + Regional Code |
| Regional + GPS SKUs (US Region Examples) | 901-T750-US01 = T750 with GPS / 901-T750-US02 = T750 without GPS / Similar SKUs for WW/EU + T750SE Variants |
| Full Product Name | Ruckus T750 High-End Premium Wi-Fi 6 802.11ax Dual-Band 4x4:4 Multi-Gigabit Ultra-High-Density IP-67 Weather-Proof Outdoor Access Point with Industry-Leading Performance + BeamFlex+ Smart Antenna + ChannelFly Machine Learning + SmartMesh + Ultra-High-Density Technology Suite + Built-in GPS (Selected Variants) + Embedded IoT Radios (BLE + Zigbee) + Dual Backhaul Options (2.5 GbE + SFP/SFP+) + PSE Out + Multiple Unified Management (3.548 Gbps + 1,024 Clients + IP-67 + Extended Operating Temperature -40°C to 65°C) |
| Brand | Ruckus (CommScope) - RUCKUS Networks |
| Product Series | Ruckus T Series Toughened Outdoor Wireless Access Points T750 Sub-Series (High-End Premium Wi-Fi 6 4x4:4 Multi-Gigabit Ultra-High-Density IP-67 Weather-Proof Outdoor AP - Industry-Leading) |
| Product Type | High-End Premium Wi-Fi 6 802.11ax Dual-Band 4x4:4 MU-MIMO Multi-Gigabit Ultra-High-Density IP-67 Weather-Proof Outdoor Access Point - Industry's First Multi-Gigabit Outdoor Wi-Fi 6 for Ultra-High-Density Public Venues |
| "T" Meaning | RUCKUS Toughened Outdoor AP Product Family (Outdoor Rugged Weather-Proof) |
| "750" Meaning | T750 Series (High-End Premium Wi-Fi 6 Outdoor AP - 4x4:4 MU-MIMO Multi-Gigabit Ultra-High-Density) |
| GPS Variant Suffix (Key Feature) | -01 = with Built-in GPS / -02 = without GPS |
| T750 vs T750SE | T750 = Omnidirectional BeamFlex+ Coverage (Uniform Coverage) / T750SE = 120° Sector Antenna + External Antenna Capable (Directional Long-Range) |
| T750 vs T350 Entry-Level | T750 = High-End 4x4:4 MU-MIMO + 3.548 Gbps + 1,024 Clients + Dual Backhaul + PSE Out + Built-in GPS + Embedded IoT + Ultra-High-Density (Premium) / T350 = Entry-Level 2x2:2 + 1.8 Gbps + Cost-Effective |
| Wi-Fi Specifications (Key Features - Industry-Leading) | |
| Wi-Fi Standard (Key Feature) | Wi-Fi 6 802.11ax (Latest Wi-Fi Standard) + Backward Compatible with 802.11a/b/g/n/ac |
| Frequency Bands | Dual-Band Concurrent - 2.4GHz + 5GHz (Simultaneous Operation) |
| MIMO Configuration (Key Feature - Industry-Leading) | 4x4:4 MU-MIMO Dual Concurrent - 8 Spatial Streams Total (4 Streams at 5GHz + 4 Streams at 2.4GHz) |
| Max Aggregate Data Rate (Key Feature - Multi-Gigabit) | Up to 3.548 Gbps (2.4 Gbps 5GHz + 1.148 Gbps 2.4GHz) - Industry's First Multi-Gigabit Outdoor Wi-Fi 6 |
| Max Concurrent Clients (Key Feature - Industry-Leading Density) | Up to 1,024 Concurrent Client Devices |
| Channel Width Support | 20/40 MHz (2.4GHz) + 20/40/80/160 MHz (5GHz) |
| Modulation | 1024-QAM (Wi-Fi 6 - up to 25% Faster Data Rates) |
| Wi-Fi 6 Advanced Features (Key Features) | |
| OFDMA (Key Feature) | Orthogonal Frequency Division Multiple Access - Efficient Simultaneous Client Communication + Ideal for Ultra-High-Density Outdoor |
| MU-MIMO (Key Feature) | Multi-User MIMO Uplink/Downlink - Simultaneous Multi-Client Communication |
| TWT (Key Feature) | Target Wake Time - IoT Device Battery Life Optimization + Critical for Battery-Powered Outdoor IoT |
| BSS Coloring | รองรับ - Reduced Co-Channel Interference in Ultra-Dense Outdoor Deployments |
| 1024-QAM | รองรับ - Higher Data Rate Modulation for Wi-Fi 6 Compliant Devices |
| Ruckus Ultra-High-Density Technology Suite (Key Feature - Industry-Leading) | Advanced Density Management + Airtime Fairness + Client Load Balancing + Band Steering + Stadium/Arena/Airport Ready |
| RUCKUS Patented Technologies (Key Features - Differentiators) | |
| BeamFlex+ Patented Smart Antenna (Key Feature - RUCKUS Signature) | Omnidirectional Coverage (T750 Standard) + Adaptive Antenna Pattern + Real-Time RF Optimization + Maximizes Signal Coverage + Critical for Ultra-Dense Outdoor |
| ChannelFly Dynamic Channel Management with Machine Learning (Key Feature - Patented) | Machine Learning-based Channel Selection + Continuous RF Optimization + Highest Throughput Guarantee |
| SmartMesh (Key Feature - Patented) | Self-Forming/Self-Healing Mesh Network + Reduces Outdoor Cabling + Wide-Area Coverage Extension |
| Airtime Fairness | รองรับ - Fair Bandwidth Distribution Across Slow/Fast Clients (Ultra-High-Density Optimized) |
| Antennas (Key Feature - Variants) | |
| T750 Standard Antenna Configuration | Internal Omnidirectional Antennas (BeamFlex+ Multi-Directional Patterns) |
| T750SE Antenna Configuration (Key Feature) | Internal 120° Sector Antennas + External Antenna Capable (Directional Coverage) |
| Antenna Technology (Key Feature - All Variants) | BeamFlex+ Patented Smart Antenna (Adaptive Antenna Pattern) |
| MIMO Configuration | 4x4:4 MU-MIMO Dual Concurrent (8 Spatial Streams Total) |
| Outdoor Rating + Environmental (Key Features - Industrial-Grade) | |
| Enclosure Rating (Key Feature) | IP-67 (Complete Protection Against Dust + Water Immersion) |
| UV Resistance | รองรับ (UV Resistant Industrial-Grade Enclosure) |
| Operating Temperature (Key Feature - Industrial) | -40°C to +65°C (Industrial Rating for Extreme Environments) |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 5% RH to 95% RH (Non-Condensing) |
| Ports / Interfaces (Key Features - Dual Backhaul + PSE Out) | |
| 2.5 GbE Multi-Gigabit Backhaul Port (Key Feature) | 1 x 2.5 GbE Multi-Gigabit Ethernet Port (Uplink Backhaul with 802.3af/at/bt PoE In - No Backhaul Bottleneck) |
| PSE Out Port (Key Feature - PoE Out) | 1 x 10/100/1000 Mbps Ethernet Port with PSE Out (PoE Out for Downstream Devices - IP Camera/Additional AP) |
| SFP/SFP+ Fiber Interface (Key Feature - Fiber Backhaul) | 1 x SFP/SFP+ Fiber Interface (Alternative Fiber Backhaul - Long-Distance Deployment) |
| AC Power Input (Key Feature - Power Flexibility) | 1 x AC Power Input 100-240 VAC (Alternative to PoE - Deployment Flexibility) |
| External Antenna Ports (T750SE Only) | รองรับ External Antenna Connections (สำหรับ Custom Antenna Deployment) |
| Reset Button | รองรับ (Factory Reset) |
| LED Indicators | Power + Status + Radio Activity LED |
| Built-in GPS (Key Feature - Selected Variants) | |
| Built-in GPS (Key Feature - T750 US01/WW01 Variants) | Built-in GPS Receiver (Location Services + Asset Tracking + Emergency Location) - US01/WW01 Variants Only |
| Non-GPS Variants | T750-US02/WW02 Variants Do NOT Have GPS (Cost-Effective Alternative) |
| IoT Support (Key Feature - Onboard Dual IoT + Pluggable) | |
| Embedded BLE Radio (Key Feature) | Built-in Bluetooth Low Energy (BLE) Radio (Concurrent with Zigbee) - Smart Locks + Beacons + Asset Tracking |
| Embedded Zigbee Radio (Key Feature) | Built-in Zigbee Radio (Concurrent with BLE) - Smart Sensors + IoT Devices |
| Pluggable IoT Module Support (Key Feature - Future-Proof) | Future IoT Protocol Support (Investment Protection) |
| Unified IoT + Wi-Fi Network | Eliminates Siloed IoT Networks + Smart Cities Ready + Smart Building Ready |
| Security (Key Features) | |
| Wi-Fi Security (Key Feature) | WPA3 (WPA3-Personal + WPA3-Enterprise) + WPA2 (Backward Compatible) + WPA + 802.1X + PSK |
| Encryption | AES + TKIP (Legacy) |
| Rogue AP Detection | รองรับ |
| Client Isolation | รองรับ |
| Power + Cabling (Key Features - Flexible Power) | |
| Power Input (Primary - Key Feature) | 802.3af/at/bt PoE via 2.5 GbE Backhaul Port (Standard/Enhanced/PoE++ Support) |
| Power Input (Secondary - Key Feature) | 100-240 VAC AC Direct Power Input (Alternative to PoE - Deployment Flexibility) |
| PSE Out (Key Feature) | PoE Out via 1GbE Port (Powers Downstream Devices - Cost-Effective Additional Deployment) |
| Cabling Support | Outdoor-Rated Cat 5e/Cat 6/Cat 6a Ethernet Cable + SFP/SFP+ Fiber Cables |
| Power Adapter / PoE Injector / AC Cable | ไม่รวมใน Package (แยกซื้อ) |
| Management Interfaces (Key Feature - Multiple Options) | |
| Management Options (Key Feature - Deployment Flexibility) | RUCKUS One Cloud AI-Driven Management + RUCKUS SmartZone (On-Premises Physical/Virtual Controllers) + RUCKUS Unleashed (Controller-less) + Standalone Web GUI |
| SNMP Support | SNMP v1/v2c/v3 |
| Zero Touch Provisioning | รองรับ - Automated Deployment via RUCKUS Cloud |
| Additional Services Support | RUCKUS IoT Suite + Cloudpath Security + SPoT Wi-Fi Location Engine + SCI Network Analytics (Optional Services) |
| Physical Specifications | |
| Form Factor | Industrial-Grade IP-67 Outdoor AP (High-End Premium Design) |
| Color | Standard Ruckus Outdoor White/Grey |
| Mounting | Wall Mount + Pole Mount + Surface Mount (Mounting Bracket Included) + Optional Secure Articulating Mounting Bracket |
| Certifications | |
| Wi-Fi Certifications | Wi-Fi Alliance (WFA) Certified 802.11ax + WPA3 + Passpoint (Hotspot 2.0) |
| IoT Certifications | BLE Certified + Zigbee Certified |
| Safety | UL 62368-1, IEC 60950-22 (Outdoor), EN 62368-1, CB, CE |
| EMC | FCC Part 15, CE, ETSI, VCCI, RCM |
| Environment | RoHS 6/6, WEEE Compliant, IP-67 Rated |
| T750 Variants Comparison (Key Consideration) | |
| T750 Standard (Omnidirectional) | Internal Omnidirectional BeamFlex+ Antennas + Uniform Coverage + Suitable for Standard High-Density Outdoor |
| T750SE (Sector + External) | Internal 120° Sector Antennas + External Antenna Capable + Directional Long-Range Coverage + Point-to-Point/Custom Deployment |
| T750-01 Variant (with GPS) | Built-in GPS Receiver + Location Services Ready |
| T750-02 Variant (without GPS) | No GPS (Cost-Effective Alternative) |
| Regional Variants (Important - Must Specify) | |
| US / Canada (FCC) | -US (901-T750-US01 with GPS / 901-T750-US02 without GPS) |
| Worldwide (Rest of World) | -WW (901-T750-WW01 with GPS / 901-T750-WW02 without GPS) |
| European Union (CE/ETSI) | -EU |
| Selected Countries (Z2) | -Z2 |
| Support License Requirements (Important - Key Consideration) | |
| Support License Recommended (Key Feature) | ต้องซื้อ Ruckus Support License อย่างน้อย 1 Year (แนะนำ - จำเป็นสำหรับ Warranty + Software Updates + Technical Support) |
| Package Contents | |
| In the Box | Ruckus T750 Outdoor Access Point x 1 (Wi-Fi 6 802.11ax Dual-Band 4x4:4 MU-MIMO 8 Spatial Streams + BeamFlex+ + ChannelFly + SmartMesh + Ultra-High-Density Technology Suite + IP-67 Weather-Proof + Built-in GPS (US01/WW01 Only) + Embedded BLE + Zigbee - ตาม Variant ที่เลือก T750 หรือ T750SE), Wall/Pole/Surface Mounting Bracket, Documentation, 1 Year Standard Warranty Required (แยกซื้อ - สินค้าไม่รวม): 802.3af/at/bt PoE Switch หรือ Outdoor-Rated PoE Injector + Power Adapter หรือ AC Power Cable (100-240 VAC), Outdoor-Rated Cat 5e/Cat 6 Ethernet Cable, SFP/SFP+ Transceivers (สำหรับ Fiber Backhaul Option), External Antennas (สำหรับ T750SE เท่านั้น), Optional Pluggable IoT Module, Optional Secure Articulating Mounting Bracket, Ruckus Support License (Recommended - อย่างน้อย 1 Year), Ruckus One Cloud License / Ruckus SmartZone License (ตาม Management Option ที่เลือก) |
| Warranty | |
| Warranty Policy | Ruckus/CommScope Enterprise Warranty (1 Year Standard) + Support License Recommended (WatchDog Support Programs) + Software Updates + Technical Support (ตามระยะเวลา Support License) |
