"JL664A"จำหน่าย HPE Aruba Networking CX 6300M 24‑port 1GbE and 4‑port SFP56 Switch"JL664A" ราคาพร้อมติดตั้ง

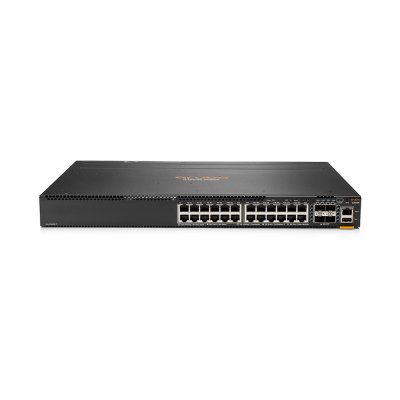

HPE Aruba Networking CX 6300M 24port 1GbE and 4port SFP56 Switch รุ่น "JL664A"

-Family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF robust security, QoS, MACsec 256, PTP, AVB and LRM1

-The series includes three stackable Layer 2-only CX 6300L access switches with HPE Smart Rate Multi-Gigabit and MACsec 256 encryption.

-High performance ASIC with 880 to 1760 Gbps system switching capacity, 660 to 1310 MPPS of system throughput and up to 200 to 400 Gbps stacking bandwidth.

-Series includes options with full density HPE Smart Rate (1/2.5/5/10GbE) Multi-Gigabit, up to 90W PoE, and a switch bundle with power-to-port airflow for data center 1G ToR and OOBM deployments.

-Built-in high speed 10/25/40/50/100 GbE uplinks with intelligent monitoring and visibility via the Network Analytics Engine.

-Manage via single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic Segmentation enables enhanced security and simple access for users and IoT.

Power consumption : Idle: 49W
100% Traffic Rate: 64W

Input voltage: JL085A PSU: 100V240V

Ports: 24-port 10/100/1000 BaseT ports;

4x 1G/10G/25G/50G* SFP ports;

1x USBC Console Port;
1x OOBM port;
1x USB Type A Host port

Latency: 1Gbps: 2.28μSec,
10Gbps: 1.46μSec,
25Gbps: 1.90μSec,
50Gbps: 3.49μSec

switching capacity: 448 Gbps

Stacking capabilities: Up to 10 switches per stack

Throughput: 334 Mpps

Memory and processor: Quad Core Arm Cortex A72 @ 1.8GHz,
8 GB DDR4, 32 GB eMMC

Management features: HPE Aruba Networking Central Network Management
HPE Aruba Networking Management Software (AirWave)
HPE Aruba Networking Switch Multi-Edit Software
Command-line interface
SNMP v2c/v3
RMON

Warranty: Limited Lifetime Warranty
