"R8S89A"จำหน่าย HPE Aruba Networking CX 6300M 24p Smart Rate 1G/2.5G/5G/10G Class6 PoE 2p 50G 2p 25G Switch"R8S89A" ราคาพร้อมติดตั้ง

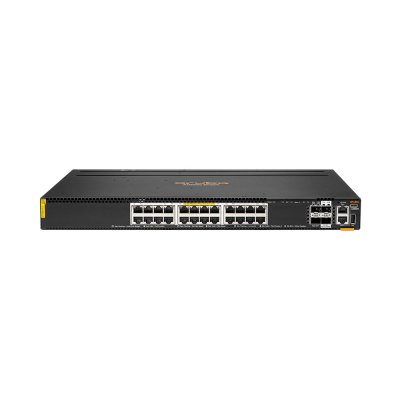

HPE Aruba Networking CX 6300M 24p Smart Rate 1G/2.5G/5G/10G Class6 PoE 2p 50G 2p 25G Switch รุ่น "R8S89A"

-Family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF robust security, QoS, MACsec 256, PTP, AVB and LRM1

-The series includes three stackable Layer 2-only CX 6300L access switches with HPE Smart Rate Multi-Gigabit and MACsec 256 encryption.

-High performance ASIC with 880 to 1760 Gbps system switching capacity, 660 to 1310 MPPS of system throughput and up to 200 to 400 Gbps stacking bandwidth.

-Series includes options with full density HPE Smart Rate (1/2.5/5/10GbE) Multi-Gigabit, up to 90W PoE, and a switch bundle with power-to-port airflow for data center 1G ToR and OOBM deployments.

-Built-in high speed 10/25/40/50/100 GbE uplinks with intelligent monitoring and visibility via the Network Analytics Engine.

-Manage via single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic Segmentation enables enhanced security and simple access for users and IoT.

Power consumption : With JL086A PSU:
Hibernation (0 rpm fan): 37W
Idle: 90W
100% Traffic Rate: 143W
With JL087A PSU:
Hibernation (0 rpm fan):41W
Idle: 90W
100% Traffic Rate: 140W
With JL670A PSU:
Hibernation (0 rpm fan): 35W
Idle: 101W
100% Traffic Rate: 152W

Input voltage: JL670A PSU: 110V-120V/208V-240V
JL086A PSU: 100V-240V
JL087A PSU: 110V-240V

Ports: 24-port Smart Rate 100M**/1G/2.5G/5G/10G BaseT Class 6 PoE ports supporting up to 60W per port (MACSEC)

2x 10G/25G/50G* SFP ports
2x 10G/25G SFP ports (MACSEC)

Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W)

1x USB-C Console Port
1x RJ Console Port
1x OOBM port
1x USB Type A Host port

Latency: 1Gbps: 4.24μSec,
10Gbps: 1.50μSec,
25Gbps: 2.91μSec,
50Gbps1: 3.49μSec

Routing/switching capacity: 880 Gbps

switching capacity: 780Gbps

Stacking capabilities: Up to 10 switches per stack

Throughput: 580 Mpps

Memory and processor: Quad Core Arm Cortex A72 @ 1.8GHz,
8 GB DDR4, 32 GB eMMC

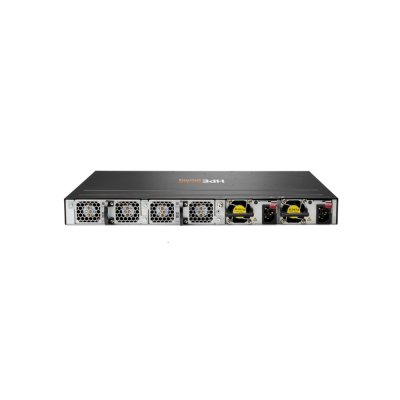

Power supply name: 2 field-replaceable, hot-swappable power supply
slots 1 minimum power supply required (ordered separately)
Supported PSUs
JL086A
JL087A
JL670A
JL758A
Max PoE Power: 2880W

PoE capability: Max PoE Power: 2880W

Management features: HPE Aruba Networking Central Network Management
HPE Aruba Networking Management Software (AirWave)
HPE Aruba Networking Switch Multi-Edit Software
Command-line interface
SNMP v2c/v3
RMON

Warranty: Limited Lifetime Warranty
