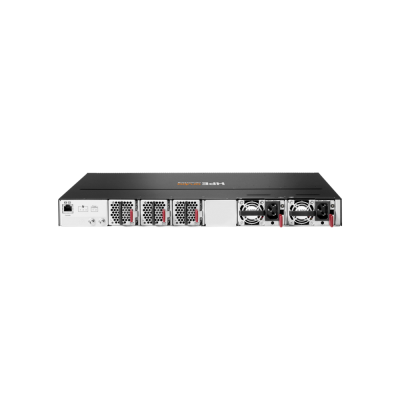

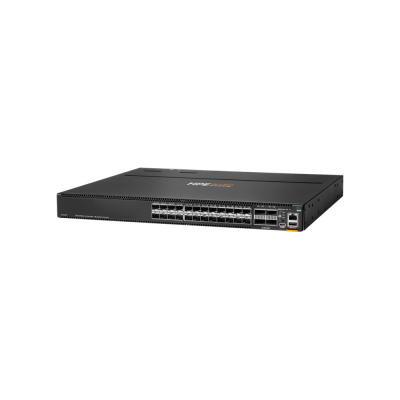

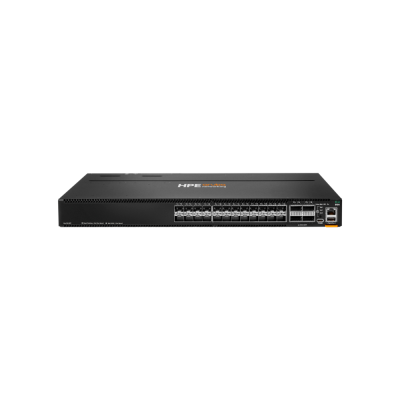

"R9W87A" HPE Aruba CX 8100 24p 10G SFP+ 4p 100G QSFP28 BF 3Fan 2PSU Switch
SKU : R9W87A
จำนวน
คำอธิบายสินค้าแบบย่อ
24 ports of 1GbE/10GbE (SFP/SFP+) 4 ports of 40GbE/100GbE (QSFP+/QSFP28)
HPE Aruba Networking CX 8100 24x10G SFP+ + 4x40/100G QSFP28 BF Airflow 3Fan 2AC PSU Switch Bundle (R9W87A) คือ Next-Generation Fiber-Only Fixed-Port Layer 3 Managed Mid-Size Aggregation / Top-of-Rack Switch 1U + Back-to-Front Airflow จากแบรนด์ระดับโลก HPE Aruba Networking (Hewlett Packard Enterprise) ในตระกูล CX 8100 Switch Series - Next-Generation Campus Core / Aggregation + Data Center ToR Switch Series ระดับสูงกว่า CX 6300 - Model 8100-24XF4C (Back-to-Front Airflow Version ของ R9W86A) ที่โดดเด่นด้วย 1.28 Tbps Switching Capacity + 1,309 Mpps Forwarding + 24 พอร์ต 1G/10G SFP/SFP+ Fiber Downlink + 4 พอร์ต 40G/100G QSFP+/QSFP28 Uplink ในตัวเดียว 1U Compact Form Factor + รองรับ Breakout Cable (4x10G/4x25G) บนพอร์ต QSFP28 - Flexible Connectivity + Aggregation + Back-to-Front (BF) Airflow - เหมาะกับ Reverse Hot/Cold Aisle Data Center Layout + Bundle Package พร้อมใช้งาน - 2 x Hot-Swappable AC PSU (JL712A - BF Version Redundant 1+1) + 3 x Hot-Swappable Back-to-Front Airflow Fan Tray (JL715A - BF Version Redundant N+1) + 2-Post Rack-Mount Kit ที่ออกแบบมาเฉพาะสำหรับ Mid-Size Campus Core / Aggregation Layer + Data Center Top-of-Rack (ToR) Server Switch ขนาดกลาง / Mid-Size Fiber Aggregation Layer ใน Reverse Airflow Data Center Layout ที่ต้องการ Fiber-Only Density ระดับกลาง + 100G Uplink + Hardware Redundancy + Reverse Airflow + Breakout Cable Flexibility เหมาะอย่างยิ่งสำหรับ Mid-Size Campus Core / Aggregation Layer ที่ต้องการ Fiber-Only 24 พอร์ต 10G + 100G Uplink + Reverse Airflow Layout, Data Center Top-of-Rack (ToR) 10G Fiber Server Switch ขนาดกลาง + 100G Spine/Leaf Uplink + Reverse Hot/Cold Aisle Layout, Modern Distributed Network Core ขนาดกลาง - 1U Compact Single-Box Solution + Reverse Airflow, Service Provider Edge Aggregation 10G Fiber + 100G Peering + BGP + EVPN + VRF + Reverse Airflow, Mid-Size Enterprise Campus Core + 10G Fiber Aggregation + 100G Inter-Building Backbone + Reverse Airflow Data Center, Branch Office / Sub-Region Core + 10G Fiber + 100G + Breakout Flexibility + Reverse Airflow, Government Mid-Tier Core + 10G Fiber + 100G + TPM + FIPS 140-2 + TAA Compliant + OSPF/BGP + EVPN/VXLAN + Reverse Airflow Compliance, Financial Banking Branch / Mid-Size HQ + 10G Trading Workstation + 100G Backbone + EVPN/VXLAN + Reverse Airflow Data Center, Healthcare Mid-Size Hospital Core + 10G DICOM Fiber + 100G Inter-Building + Layer 3 Multicast + Reverse Airflow, Education มหาวิทยาลัย Mid-Size Campus Core + 10G Research Compute + 100G + BGP + Reverse Airflow, Manufacturing Smart Factory Mid-Size Core + 10G Edge Compute + 100G + EVPN + Reverse Airflow, Hospitality Luxury Mid-Size Hotel + 10G Fiber + 100G + Layer 3 + Reverse Airflow, Stadium/Arena/Convention Center Mid-Size Venue Core + 10G + 100G + BGP + Reverse Airflow, Retail Mid-Size Mall Multi-Floor Core + 10G Fiber + 100G + Layer 3 Multi-VLAN + Reverse Airflow, Co-Working Mid-Size Tower Core + 10G + 100G + Layer 3 + Reverse Airflow, Smart Building Mid-Size Tower Core + 10G IoT + 100G + Layer 3 Multicast + Reverse Airflow, AI/ML Mid-Size Compute Cluster Backbone + 10G + 100G Inter-Compute + Reverse Airflow, R&D Lab / Test Lab Mid-Size Core + 10G + 100G + Layer 3 + Reverse Airflow, Video Editing / Post-Production Mid-Size Studio + 10G SAN + 100G Backbone + Reverse Airflow, Mission-Critical Mid-Tier Network Core + 10G + 100G + VSX Active-Active + Carrier-Class HA + Reverse Airflow, Modern Distributed Mid-Size Network Core + 10G Leaf + 100G Spine + EVPN/VXLAN + Reverse Airflow Data Center, Cloud-First Mid-Size Enterprise Core + VXLAN Fabric + EVPN + BGP + 10G + 100G + Reverse Airflow, HQ ของบริษัทระดับกลาง + 10G Fiber + 100G + Layer 3 Full + Reverse Airflow, Mid-Size ISP Business Core + 10G + 100G + BGP + EVPN + Reverse Airflow มาพร้อม Hardware ระดับ Premium Fixed-Port Switch 1U ประกอบด้วย 24 พอร์ต 1G/10G SFP/SFP+ Fiber Downlink (รองรับ SFP 1G + SFP+ 10G Transceivers + DAC + AOC + 1GBASE-T SFP RJ-45 Copper), 4 พอร์ต 40G/100G QSFP+/QSFP28 High-Speed Uplink (รองรับ QSFP+ 40G + QSFP28 100G Transceivers + DAC + AOC + Breakout Cable 4x10G/4x25G), Quad Core ARM Cortex A72 @ 1.8 GHz CPU, 1.28 Tbps Switching Capacity + 1,309 Mpps Forwarding, Total 28 พอร์ต - Wire-Speed Non-Blocking Performance, AOS-CX Modern Database-Driven Operating System, Fully Distributed Microservices Architecture + Modular Linux + Database-Driven Configuration, Integrated Trusted Platform Module (TPM) + AOS-CX FIPS 140-2 Validated Cryptography + TAA Compliant, Layer 3 FULL - BGP + EVPN + VXLAN + VRF + OSPF + PIM Multicast + IPv6, VSX (Virtual Switching Extension) High Availability + MC LAG + Non-Disruptive Upgrades + Carrier-Class HA, Dynamic Segmentation + User-Based Tunneling + Layer 7 Stateful Firewall + Switch-to-Switch Tunnels, Network Analytics Engine (NAE) + Time Series Database (TSDB) + REST APIs + Python Agents + Ansible/Terraform + IPFIX + WebSocket Subscriptions + TLS-Encrypted Traffic Analytics, Hardware Redundancy - 2 x Hot-Swappable AC PSU (JL712A - BF Version 1+1 Redundant) + 3 x Hot-Swappable Back-to-Front Airflow Fan Tray (JL715A - BF Version N+1 Redundant), RJ-45 Serial + USB-C Console + RJ-45 Ethernet Out-of-Band Management Port + USB-Type A, ZTP, จัดการผ่าน HPE Aruba Networking Central + CX Mobile App + Aruba NetEdit + Switch Multi-Edit + Aruba Fabric Composer (Software-Defined Leaf-Spine Orchestration), ที่มาพร้อม HPE Limited Lifetime Warranty เป็น Switch รุ่น Mid-Size Fiber-Only Aggregation/ToR 1U Fixed-Port Back-to-Front Airflow ของกลุ่ม CX 8100 ที่ลงตัวที่สุดสำหรับ Mid-Size Campus Core + Aggregation Layer + Data Center ToR ขนาดกลาง ที่ต้องการ 10G Fiber 24 พอร์ต + 100G Uplink + Breakout Cable Support + AOS-CX Modern OS + TPM + FIPS 140-2 + TAA Compliant + Reverse Airflow Data Center Layout + หมายเหตุสำคัญ: Bundle นี้ใช้ Back-to-Front Airflow (BF) - หากต้องการ Front-to-Back (FB) ใช้รุ่น R9W86A / R9W87A รองรับ Breakout Cable บนพอร์ต QSFP28
คุณสมบัติเด่น (Key Features)
- CX 8100 Series Mid-Size Fiber-Only Aggregation/ToR 1U Fixed-Port Switch - Model 8100-24XF4C - Back-to-Front Airflow Version ของ R9W86A + รองรับ Breakout
- Brand HPE Aruba Networking - Gartner Magic Quadrant Leader
- HPE Limited Lifetime Warranty + No Subscription Fees: TCO ต่ำที่สุด
- 1.28 Tbps Switching Capacity + 1,309 Mpps Forwarding
- 24 พอร์ต 1G/10G SFP/SFP+ Fiber Downlink: Fiber-Only Mid-Size Aggregation - รองรับ SFP 1G + SFP+ 10G + 1GBASE-T SFP RJ-45 Copper
- 4 พอร์ต 40G/100G QSFP+/QSFP28 High-Speed Uplink: Modern Data Center Backbone Speed
- รองรับ Breakout Cable (4x10G/4x25G) บนพอร์ต QSFP28: Flexible Connectivity - 1 QSFP28 100G เป็น 4x10G/4x25G
- 1U Compact Form Factor: ประหยัดพื้นที่ Rack
- Bundle Package พร้อมใช้งาน: 2 x Hot-Swappable AC PSU (JL712A - BF Version) + 3 x Hot-Swappable Fan Tray (JL715A - BF Version) + 2-Post Rack-Mount Kit
- Hardware Redundancy - PSU 1+1 + Fan N+1: Mission-Critical Network ระดับ 99.999% Uptime
- Back-to-Front (BF) Airflow: เหมาะกับ Reverse Hot/Cold Aisle Data Center Layout
- Quad Core ARM Cortex A72 @ 1.8 GHz CPU
- AOS-CX Modern Database-Driven Operating System: Fully Distributed Microservices Architecture
- Integrated Trusted Platform Module (TPM) + AOS-CX FIPS 140-2 + TAA Compliant: Government Top-Tier Security
- Layer 3 FULL - BGP + EVPN + VXLAN + VRF + OSPF + PBR + BFD + Multicast PIM + IPv6 Dual Stack
- VSX High Availability + MC LAG + Non-Disruptive Upgrades + Carrier-Class HA
- Multicast PIM-SM/DM + IGMP/MLD เต็มรูปแบบ + L3-Multicast Snooping
- Dynamic Segmentation + User-Based Tunneling + Layer 7 Stateful Firewall + Switch-to-Switch Tunnels
- NAE + TSDB + REST APIs + Python Agents + Ansible/Terraform + IPFIX + WebSocket Subscriptions + TLS-Encrypted Traffic Analytics
- HPE Aruba Networking Central + AirWave + Aruba Fabric Composer (Leaf-Spine Orchestration)
- Zero-Touch Provisioning (ZTP) + RJ-45 Serial + USB-C Console + RJ-45 Ethernet OOBM + USB-Type A
- Jumbo Frame 9K bytes + ECN Marking + Lossless Pool + Internal Loopback Testing
- Always-On Architecture + Zero Downtime Upgrades
- Power Consumption ต่ำ (Non-PoE / Fiber-Only): ประหยัดพลังงาน
ข้อมูลทางเทคนิค (Specifications)
| Product Identification | |
| SKU / Part Number | R9W87A |
| Full Product Name | HPE Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 BF Airflow 3Fan 2AC PSU Switch Bundle |
| Brand | HPE Aruba Networking (Hewlett Packard Enterprise) |
| Product Series | HPE Aruba Networking CX 8100 Switch Series - Next-Generation Campus Core/Aggregation + Data Center ToR Switch Series |
| Product Type | Fiber-Only Fixed-Port Layer 3 Managed Mid-Size Aggregation/Top-of-Rack (ToR) Switch (1U Rack-Mountable Bundle) - Back-to-Front Airflow Version |
| Model Variant | CX 8100-24XF4C (24 x 10G SFP+ Fiber + 4 x 100G QSFP28) - BF Airflow Version |
| FB Version Counterpart | R9W86A (Front-to-Back Airflow Version) |
| Hardware Platform | |
| CPU | Quad Core ARM Cortex A72 @ 1.8 GHz |
| ASIC | HPE Aruba ASIC (Modern Generation) |
| Architecture | Fully Distributed Microservices Architecture + Modular Linux + Database-Driven Configuration |
| Operating System | AOS-CX (HPE Aruba Networking CX Switch Operating System) - Modern Database-Driven Linux OS |
| Security Hardware | Integrated Trusted Platform Module (TPM) + FIPS 140-2 Validated Cryptography + TAA Compliant |
| Microservices | Software Processes ทุกตัวรันเป็น Microservices + State Database Communication - Fault Isolation |
| Performance | |
| Switching Capacity | 1.28 Tbps (Non-Blocking) |
| Forwarding Rate | 1,309 Mpps (Wire-Speed) |
| Throughput | Wire-Speed ทุกพอร์ต |
| Latency | Very Low Latency |
| Network Interfaces / Ports (28 Total Ports - Fiber-Only Configuration) | |
| SFP/SFP+ Downlink Ports (1G/10G Fiber) | 24 x 1G/10G SFP/SFP+ Fiber (Min=0/Max=24 SFP/SFP+ Transceivers) |
| QSFP+/QSFP28 Uplink Ports (40G/100G) | 4 x 40G/100G QSFP+/QSFP28 Multi-Speed |
| Total Ports | 28 x Ports (24 SFP+ + 4 QSFP28) |
| QSA28 Adapter Support | รองรับ QSA28 Adapter (Min=0/Max=6) - แปลง QSFP28 เป็น SFP28 25G |
| PoE Capability | Non-PoE / Data Only (Fiber-Only) |
| Breakout Cable Support | รองรับ Breakout Cable (4x10G/4x25G) บนพอร์ต QSFP28 - 1 QSFP28 100G เป็น 4x10G หรือ 4x25G |
| 1GBASE-T Support | รองรับ 1GBASE-T Copper SFP RJ-45 บน SFP+ Ports |
| Transceiver Support | |
| SFP Transceiver (1G) | SFP 1G SR/LR + Copper SFP RJ-45 1G (1GBASE-T) |
| SFP+ Transceiver (10G) | SFP+ 10G SR/LR/ER + DAC + AOC (ไม่รองรับ 10G LRM + ไม่รองรับ 7M 10G DAC) |
| QSFP+ Transceiver (40G) | QSFP+ 40G SR4/LR4/ER4 + DAC/AOC + Breakout 4x10G |
| QSFP28 Transceiver (100G) | QSFP28 100G SR4/LR4/ER4/CWDM4/PSM4 + DAC/AOC + Breakout 4x25G |
| Layer 2 / Layer 3 Features (AOS-CX) | |
| Layer 2 | IEEE 802.1Q VLAN, Voice VLAN, Private VLAN (Isolated/Community/Primary), STP, RSTP, MSTP, RPVST+, LACP (802.3ad), UDLD, Loop Protect, BPDU Guard, LLDP, LLDP-MED, Jumbo Frame 9K bytes |
| Routing Protocols | BGP + EVPN + VXLAN + VRF + OSPF (IPv4/IPv6) + Static Routing |
| Advanced L3 | PBR + BFD + IP SLA + VRRP v2/v3 (IPv4 + IPv6) |
| IPv4 / IPv6 | IPv4/IPv6 Dual Stack |
| Multicast | IGMP v1/v2/v3, MLD v1/v2, PIM-SM/DM (IPv4/IPv6) + MSDP + L3-Multicast + IGMP/MLD Snooping |
| Congestion Management | ECN Marking (Congestion Experienced) + Periodic Flushing + Advanced Lossless Pool Configuration |
| VSX (Virtual Switching Extension) - High Availability | |
| VSX Cluster | 2-Member Active-Active + Multi-chassis Link Aggregation (MC LAG) |
| VSX Live Upgrades | รองรับ - Non-Disruptive Fast Upgrades + Zero Downtime Upgrades |
| Always-On Architecture | รองรับ - Continual State Synchronization + Superior Fault Tolerance |
| Dynamic Segmentation | |
| User-Based Tunneling (UBT) | รองรับ |
| Role-based Access Control | กำหนด Policy ตาม Role |
| Layer 7 Stateful Firewall | รองรับ - Application-Aware Firewall Enforcement |
| Switch-to-Switch Tunnels | รองรับ + VXLAN-to-VRF Mapping + Multi-Tenant Support |
| NAE / TSDB / Automation | |
| NAE | Network Analytics Engine - Real-time Monitoring + Automated Troubleshooting + Python Agents + REST APIs + TLS-Encrypted Traffic Analytics + Embedded ใน Switch ทุกตัว |
| TSDB | Time Series Database |
| Telemetry | IPFIX (Internet Protocol Flow Information Export) + WebSocket Subscriptions for Event-Driven Automation |
| Automation | Ansible, Python, Terraform, REST API |
| Aruba Fabric Composer | Software-Defined Leaf-Spine Orchestration Solution |
| Security / Authentication | |
| Hardware Security | Integrated Trusted Platform Module (TPM) |
| Cryptography | FIPS 140-2 Validated Cryptography |
| Compliance | TAA Compliant (Trade Agreements Act) |
| ACL | IPv4/IPv6 ACL + Object Groups + Control Plane Protection (SSH, SNMP, NTP, Web) |
| Authentication | 802.1X, Mac-Auth, LUR (Local User Roles), DUR (Downloadable User Roles), Port-Access Policy, Static Port Filtering, RADIUS, TACACS+ |
| SCEP | Simple Certificate Enrollment Protocol - PKI Management |
| QoS / Management | |
| QoS | CoS (802.1p), ToS, DSCP, sFlow + Advanced QoS |
| Cloud Management | HPE Aruba Networking Central (Cloud + On-Premise) + CX Mobile App + Aruba NetEdit + Switch Multi-Edit Software + AirWave + Aruba Fabric Composer |
| SNMP | SNMP v2c/v3 + RMON |
| Web GUI / CLI / REST API | รองรับครบ + Python / Ansible / Terraform |
| Management Interfaces | RJ-45 Serial Console + USB-C Console + RJ-45 Ethernet Out-of-Band Management Port + USB-Type A |
| ZTP | Zero-Touch Provisioning |
| Power Supply (Hot-Swappable Redundant 1+1) - BF Version | |
| PSU Type | 2 x Hot-Swappable AC Power Supply (Bundle รวม - JL712A x 2 - BF Airflow Version) |
| PSU Redundancy | 1+1 Active-Standby Redundancy |
| Input Voltage | 100-240V AC (Universal) |
| Power Cord | รวมในชุด |
| Fan / Cooling (Hot-Swappable Redundant N+1) - BF Version | |
| Fan Tray | 3 x Hot-Swappable Fan Tray (Bundle รวม - JL715A x 3 - BF Airflow Version) |
| Airflow Direction | Back-to-Front (BF) Airflow - เหมาะกับ Reverse Hot/Cold Aisle Data Center Layout |
| Fan Redundancy | N+1 Redundancy |
| Compliant Standards | |
| IEEE Standards | 802.3, 802.1D, 802.1Q, 802.1p, 802.3x, 802.3ad, 802.1w, 802.1s, 802.3az, 802.3ae (10GbE), 802.3ba (40/100GbE), 802.1AX, 802.1ab, 802.1ak, 802.1t, 802.1v, 802.1x, 802.3ab, 802.3an |
| Safety | EN 62368-1, UL 62368-1, CSA C22.2 No. 62368-1, IEC 62368-1 |
| Physical Specifications | |
| Form Factor | 1U Rack-Mountable |
| Rack-Mount Kit | 2-Post Rack-Mount Kit รวมในชุด (4-Post ต้องสั่งซื้อแยก) |
| Target Use Cases | |
| Recommended For | Mid-Size Campus Core/Aggregation Layer Fiber-Only 24 พอร์ต 10G + 100G Uplink + Reverse Airflow Layout, Data Center Top-of-Rack (ToR) 10G Fiber Server Switch ขนาดกลาง + 100G Spine/Leaf Uplink + Reverse Hot/Cold Aisle Layout, Modern Distributed Network Core ขนาดกลาง 1U Compact + Reverse Airflow, Service Provider Edge Aggregation 10G Fiber + 100G Peering + BGP + EVPN + VRF + Reverse Airflow, Mid-Size Enterprise Campus Core + 10G Fiber Aggregation + 100G Inter-Building + Reverse Airflow, Branch Office/Sub-Region Core + 10G Fiber + 100G + Breakout + Reverse Airflow, Government Mid-Tier Core + 10G Fiber + 100G + TPM + FIPS + TAA + OSPF/BGP + EVPN + Reverse Airflow Compliance, Financial Banking Branch/Mid-Size HQ + 10G Trading Workstation + 100G + EVPN/VXLAN + Reverse Airflow Data Center, Healthcare Mid-Size Hospital Core + 10G DICOM Fiber + 100G + Layer 3 Multicast + Reverse Airflow, Education มหาวิทยาลัย Mid-Size Campus Core + 10G Research Compute + 100G + BGP + Reverse Airflow, Manufacturing Smart Factory Mid-Size Core + 10G Edge Compute + 100G + EVPN + Reverse Airflow, Hospitality Luxury Mid-Size Hotel + 10G Fiber + 100G + Layer 3 + Reverse Airflow, Stadium/Arena/Convention Center Mid-Size Venue Core + 10G + 100G + BGP + Reverse Airflow, Retail Mid-Size Mall Multi-Floor Core + 10G Fiber + 100G + Layer 3 Multi-VLAN + Reverse Airflow, Co-Working Mid-Size Tower Core + 10G + 100G + Layer 3 + Reverse Airflow, Smart Building Mid-Size Tower Core + 10G IoT + 100G + Multicast + Reverse Airflow, AI/ML Mid-Size Compute Cluster Backbone + 10G + 100G Inter-Compute + Reverse Airflow, R&D Lab/Test Lab Mid-Size Core + 10G + 100G + Reverse Airflow, Video Editing/Post-Production Mid-Size Studio + 10G SAN + 100G + Reverse Airflow, Mission-Critical Mid-Tier Network Core + VSX Active-Active + Carrier-Class HA + Reverse Airflow, Modern Distributed Mid-Size Network Core + 10G Leaf + 100G Spine + EVPN/VXLAN + Reverse Airflow Data Center, Cloud-First Mid-Size Enterprise Core + VXLAN Fabric + EVPN + BGP + Reverse Airflow, HQ Mid-Size Core + 10G Fiber + 100G + Layer 3 Full + Reverse Airflow, Mid-Size ISP Business Core + 10G + 100G + BGP + EVPN + Reverse Airflow |
| Package Contents (Bundle) | |
| In the Box | R9W87A 8100-24XF4C Switch x 1 (Base Switch), 2 x Hot-Swappable AC PSU (JL712A x 2 - BF Version), 3 x Hot-Swappable Back-to-Front Airflow Fan Tray (JL715A x 3 - BF Version), 2-Post Rack-Mount Kit, AC Power Cord (US/EU/UK ตาม Region), Quick Start Guide, Warranty Card Required (แยกซื้อ): SFP/SFP+ Transceivers (1G/10G Fiber + DAC/AOC + 1GBASE-T SFP RJ-45 Copper), QSFP+/QSFP28 Transceivers (40G/100G Fiber + DAC/AOC + Breakout Cable), 4-Post Rack-Mount Kit (Optional), Aruba Central License (Optional) |
| Warranty | |
| Warranty Policy | HPE Limited Lifetime Warranty (รับประกันตลอดอายุการใช้งาน) + Switch Software Embedded - No Software License Fees + No Subscription Required |
| Software Updates | ฟรี Software Updates ตลอดอายุการใช้งาน |
การใช้งานที่เหมาะสม (Use Cases)
- Mid-Size Campus Core/Aggregation Layer Fiber-Only 24 พอร์ต 10G + 100G Uplink + Reverse Airflow Layout: Campus Core/Aggregation ขนาดกลาง ที่ติดตั้งใน Data Center ที่ใช้ Reverse Hot/Cold Aisle Layout
- Data Center Top-of-Rack (ToR) 10G Fiber Server Switch ขนาดกลาง + 100G Spine/Leaf Uplink + Reverse Hot/Cold Aisle Layout: ToR ที่เชื่อมต่อ 10G Fiber Server 24 ตัว + 100G Spine Uplink + Breakout Cable Support ใน Reverse Airflow Data Center
- Mid-Size Enterprise Campus Core + 10G Fiber Aggregation + 100G Inter-Building + Reverse Airflow Data Center: Mid-Size Campus ที่ต้องการ Fiber Aggregation + 100G Inter-Building Backbone + Hardware Redundancy + Reverse Airflow Layout
- Government Mid-Tier Core + TPM + FIPS 140-2 + TAA Compliant + 10G + 100G + Reverse Airflow Compliance: Government Mid-Tier ที่ต้องการ Hardware Security ระดับสูง + Compliance + Reverse Airflow Data Center
เหตุผลที่ควรเลือก HPE Aruba R9W87A
- CX 8100 Series Mid-Size Fiber-Only Aggregation/ToR 1U Fixed-Port Switch - Model 8100-24XF4C - Back-to-Front Airflow Version
- Brand HPE Aruba Networking - Gartner Magic Quadrant Leader
- HPE Limited Lifetime Warranty + No Subscription Fees: TCO ต่ำที่สุด
- 1.28 Tbps Switching Capacity + 1,309 Mpps Forwarding
- 24 พอร์ต 1G/10G SFP/SFP+ Fiber Downlink + รองรับ 1GBASE-T SFP RJ-45 Copper
- 4 พอร์ต 40G/100G QSFP+/QSFP28 High-Speed Uplink
- รองรับ Breakout Cable (4x10G/4x25G) บนพอร์ต QSFP28 - Flexible Connectivity
- 1U Compact Form Factor - ประหยัดพื้นที่ Rack
- Bundle Package พร้อมใช้งาน - 2 PSU JL712A + 3 Fan JL715A + Rack Kit รวมในชุด
- Hardware Redundancy - PSU 1+1 + Fan N+1 - Hot-Swappable ทั้งหมด
- Back-to-Front (BF) Airflow - เหมาะกับ Reverse Hot/Cold Aisle Data Center Layout
- Quad Core ARM Cortex A72 @ 1.8 GHz CPU
- AOS-CX Modern Database-Driven OS + Fully Distributed Microservices Architecture
- Integrated TPM + FIPS 140-2 Validated Cryptography + TAA Compliant: Government Top-Tier Security
- Layer 3 FULL - BGP + EVPN + VXLAN + VRF + OSPF + PBR + BFD + Multicast PIM + IPv6
- VSX High Availability + MC LAG + Non-Disruptive Upgrades + Zero Downtime
- Multicast PIM-SM/DM + IGMP/MLD ครบรูปแบบ + L3-Multicast Snooping
- Dynamic Segmentation + UBT + Layer 7 Stateful Firewall + Switch-to-Switch Tunnels
- NAE + TSDB + REST APIs + Python Agents + Ansible/Terraform + IPFIX + WebSocket + TLS-Encrypted Analytics
- HPE Aruba Networking Central + AirWave + Aruba Fabric Composer
- RJ-45 Serial + USB-C Console + RJ-45 Ethernet OOBM + USB-Type A + ZTP
- Jumbo Frame 9K bytes + ECN Marking + Lossless Pool
- Always-On Infrastructure - Continual State Synchronization + Superior Fault Tolerance
- Power Consumption ต่ำ (Non-PoE / Fiber-Only): ประหยัดพลังงาน
- รับประกันคุณภาพ + นำเข้าอย่างเป็นทางการ: สินค้านำเข้าจาก HPE Official Channel + บริการหลังการขายโดยทีมผู้เชี่ยวชาญ
สนใจสั่งซื้อ HPE Aruba Networking CX 8100 24-Port 10G SFP+ + 4-Port 40G/100G QSFP28 BF Airflow 3Fan 2AC PSU Switch Bundle (R9W87A) หรือสอบถามข้อมูล CX 8100 Series Mid-Size Fiber-Only Aggregation/ToR 1U Fixed-Port Layer 3 Managed Switch Back-to-Front Airflow Version + 1.28 Tbps Switching Capacity + 1,309 Mpps Forwarding + Quad Core ARM Cortex A72 @ 1.8 GHz + 24 พอร์ต 1G/10G SFP/SFP+ Fiber Downlink + รองรับ 1GBASE-T SFP RJ-45 Copper + 4 พอร์ต 40G/100G QSFP+/QSFP28 High-Speed Uplink + รองรับ Breakout Cable (4x10G/4x25G) บนพอร์ต QSFP28 + QSA28 Adapter Support + 1U Compact Form Factor + Bundle 2 x Hot-Swappable AC PSU (JL712A - BF Version) + 3 x Hot-Swappable Back-to-Front Airflow Fan Tray (JL715A - BF Version) + 2-Post Rack-Mount Kit + Hardware Redundancy PSU 1+1 + Fan N+1 + Back-to-Front (BF) Airflow + AOS-CX Modern Database-Driven OS + Fully Distributed Microservices Architecture + Integrated TPM + FIPS 140-2 Validated Cryptography + TAA Compliant + Layer 3 FULL (BGP + EVPN + VXLAN + VRF + OSPF) + PBR + BFD + Multicast PIM + IPv6 Dual Stack + VSX High Availability + MC LAG + Non-Disruptive Upgrades + Zero Downtime + Always-On Architecture + Dynamic Segmentation via User-Based Tunneling + Layer 7 Stateful Firewall + Switch-to-Switch Tunnels + VXLAN-to-VRF Mapping + NAE Embedded + TSDB + IPFIX + WebSocket + TLS-Encrypted Traffic Analytics + Aruba Networking Central + Aruba Fabric Composer (Leaf-Spine Orchestration) + AirWave + ZTP + REST APIs + Python Agents + Ansible/Terraform + Jumbo Frame 9K + ECN Marking + Lossless Pool + HPE Limited Lifetime Warranty สำหรับ Mid-Size Campus Core/Aggregation Layer Fiber-Only 24 พอร์ต 10G + 100G Uplink + Reverse Airflow Layout, Data Center Top-of-Rack (ToR) 10G Fiber Server Switch ขนาดกลาง + 100G Spine/Leaf Uplink + Reverse Hot/Cold Aisle Layout, Modern Distributed Network Core ขนาดกลาง 1U Compact + Reverse Airflow, Service Provider Edge Aggregation 10G Fiber + 100G Peering + BGP + EVPN + VRF + Reverse Airflow, Mid-Size Enterprise Campus Core + 10G Fiber Aggregation + 100G Inter-Building + Reverse Airflow, Branch Office/Sub-Region Core + 10G Fiber + 100G + Breakout + Reverse Airflow, Government Mid-Tier Core + TPM + FIPS + TAA + OSPF/BGP + EVPN + Reverse Airflow Compliance, Financial Banking Branch/Mid-Size HQ + 10G Trading + 100G + EVPN/VXLAN + Reverse Airflow Data Center, Healthcare Mid-Size Hospital Core + 10G DICOM Fiber + 100G + Layer 3 Multicast + Reverse Airflow, Education มหาวิทยาลัย Mid-Size Campus Core + 10G Research + 100G + BGP + Reverse Airflow, Manufacturing Smart Factory Mid-Size Core + 10G Edge Compute + 100G + EVPN + Reverse Airflow, Hospitality Luxury Mid-Size Hotel + 10G Fiber + 100G + Layer 3 + Reverse Airflow, Stadium/Arena/Convention Center Mid-Size Venue Core + 10G + 100G + BGP + Reverse Airflow, Retail Mid-Size Mall Multi-Floor Core + Layer 3 Multi-VLAN + Reverse Airflow, Co-Working Mid-Size Tower Core + Layer 3 + Reverse Airflow, Smart Building Mid-Size Tower Core + 10G IoT + 100G + Multicast + Reverse Airflow, AI/ML Mid-Size Compute Cluster Backbone + 10G + 100G + Reverse Airflow, R&D Lab/Test Lab Mid-Size Core + 10G + 100G + Reverse Airflow, Video Editing/Post-Production Mid-Size Studio + 10G SAN + 100G + Reverse Airflow, Mission-Critical Mid-Tier Network Core + VSX Active-Active + Carrier-Class HA + Reverse Airflow, Modern Distributed Mid-Size Network Core + 10G Leaf + 100G Spine + EVPN/VXLAN + Reverse Airflow Data Center, Cloud-First Mid-Size Enterprise Core + VXLAN Fabric + EVPN + BGP + Reverse Airflow, HQ Mid-Size Core + Layer 3 Full + Reverse Airflow, Mid-Size ISP Business Core + 10G + 100G + BGP + EVPN + Reverse Airflow เพิ่มเติม ติดต่อทีมผู้เชี่ยวชาญของเราได้ทันที พร้อมบริการให้คำปรึกษา ออกแบบ CX 8100 Switch Configuration + Aruba Central Cloud + VSX Active-Active Cluster + EVPN-VXLAN Fabric + BGP/OSPF + Dynamic Segmentation + Aruba Fabric Composer Leaf-Spine Orchestration + 10G Fiber Aggregation + 100G Backbone + Reverse Airflow Data Center Deployment, จัดหา CX 8100 Switch (R9W87A) + SFP/SFP+ 1G/10G Transceivers (Fiber + DAC/AOC + 1GBASE-T SFP RJ-45 Copper) + QSFP+/QSFP28 40G/100G Transceivers + DAC/AOC + Breakout Cable + Aruba Central License + Aruba Fabric Composer และติดตั้งครบวงจร
