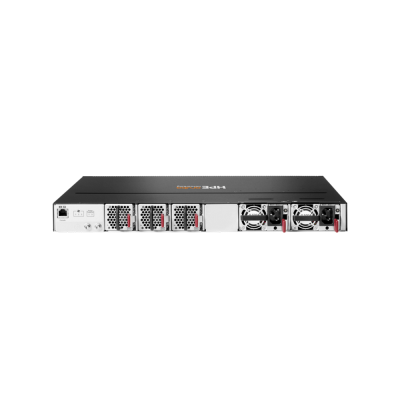

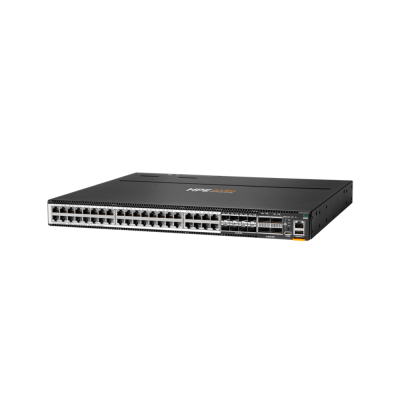

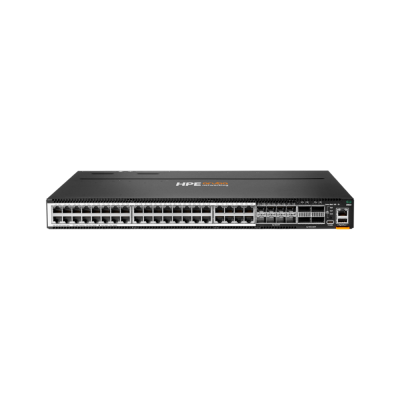

"R9W93A" HPE Aruba CX 8100 40p 10GBase-T 8p SFP+ 4p QSFP28 100G BF Switch
SKU : R9W93A
จำนวน
คำอธิบายสินค้าแบบย่อ
40 ports of 100M/1/2.5/5/10GbE/ 10BaseT 8 ports of 1/GbE/10GbE (SFP/SFP+) 4 ports of 40GbE/100GbE (QSFP+/QSFP28)
HPE Aruba Networking CX 8100 40x10G Base-T + 8x10G SFP+ + 4x40/100G QSFP28 BF Airflow 3Fan 2AC PSU Switch Bundle (R9W93A) คือ Next-Generation Top-Tier Hybrid Fixed-Port Layer 3 Managed Aggregation / Top-of-Rack Switch 1U รุ่นใหญ่ที่สุดในกลุ่ม CX 8100 Switch Series จากแบรนด์ระดับโลก HPE Aruba Networking (Hewlett Packard Enterprise) ในตระกูล CX 8100 Switch Series - Next-Generation Campus Core / Aggregation + Data Center ToR Switch Series - Model 8100-40XT8XF4C (รุ่นสูงสุดของกลุ่ม CX 8100) ที่โดดเด่นด้วย 1.76 Tbps Bi-Directional Switching Capacity + 1,309 Mpps Forwarding + 52 พอร์ตรวมในตัวเดียว 1U Compact - 40 พอร์ต Smart Rate 100M/1G/2.5G/5G/10G BASE-T Copper + 8 พอร์ต 1G/10G SFP/SFP+ Fiber + 4 พอร์ต 40G/100G QSFP+/QSFP28 Uplink + Back-to-Front (BF) Airflow - เหมาะกับ Reverse Hot/Cold Aisle Layout + Bundle Package พร้อมใช้งาน - 2 x Hot-Swappable AC PSU (Redundant 1+1) + 3 x Hot-Swappable Back-to-Front Airflow Fan Tray (Redundant N+1) + 2-Post Rack-Mount Kit ที่ออกแบบมาเฉพาะสำหรับ Top-Tier Modern Campus Core / Aggregation Layer + Mega Data Center Top-of-Rack (ToR) Server Switch ขนาดใหญ่ที่ต้องการ Maximum Port Density + Mix Copper (Smart Rate) + Fiber (SFP+) + 100G Uplink ในตัวเดียว 1U + Hardware Redundancy + Reverse Airflow Layout เหมาะอย่างยิ่งสำหรับ Top-Tier Mega Campus Core / Aggregation Layer Hybrid Maximum Port Density Smart Rate Copper + Fiber + 100G Uplink, Mega Data Center Top-of-Rack (ToR) 10G Server Switch สูงสุด 40 พอร์ต Copper + 8 พอร์ต Fiber + 100G Spine/Leaf Uplink, Wi-Fi 7 AP Mega Aggregation Switch + Smart Rate 5G/10G AP Uplink 40 พอร์ต + 100G Backbone, Mega Workstation Cluster 10G Copper + 100G Backbone + Mix Fiber, AI/ML Mega Compute Cluster 10G Copper Compute Node 40 ตัว + 100G Backbone, Modern Distributed Mega Network Aggregation - 1U Compact Top-Tier Hybrid Solution + Reverse Airflow, Mega Service Provider Edge Aggregation Smart Rate + Fiber + 100G Peering + BGP + EVPN + VRF, Enterprise Top-Tier Mega Campus Core Hybrid (Copper Smart Rate + Fiber Mix) + 100G Inter-Building Backbone, Mega Campus Multi-Building Backbone + Smart Rate Wi-Fi 7 AP + 100G High-Speed Backbone, Government Top-Tier Mega Core + Smart Rate Server + Fiber + 100G + TPM + FIPS + TAA + OSPF/BGP + EVPN/VXLAN, Financial Banking Mega Headquarter + Trading Floor 10G Copper Workstation + 100G Backbone + EVPN/VXLAN + Reverse Airflow Data Center, Healthcare Mega Hospital Mega Data Center + 10G DICOM Workstation Copper + 100G Inter-Building + Layer 3 Multicast, Education มหาวิทยาลัย Mega Research Data Center + 10G Research Compute Copper + Fiber + 100G + BGP, Manufacturing Smart Factory Top-Tier Mega Data Center + 10G Copper Edge Compute + Fiber + 100G + EVPN/VXLAN, Hospitality Luxury Mega Hotel/Convention Mega Data Center + Smart Rate Multi-Gig + Fiber + 100G + Layer 3 + Reverse Airflow, Stadium/Arena/Convention Center Mega Venue Mega Core + Smart Rate Wi-Fi 7 + Fiber + 100G + BGP, Retail Flagship Mega Mall Multi-Floor Mega Core + Smart Rate + Fiber + 100G + Layer 3 Multi-VLAN, Co-Working Premium Mega Tower Core + Wi-Fi 7 AP + Fiber + 100G + Layer 3, Smart Building Mega Tower Mega Core + Smart Rate IoT + Fiber + 100G + Multicast, Mission-Critical Top-Tier Mega Network Core + Smart Rate + Fiber + 100G + VSX Active-Active + Carrier-Class HA + Reverse Airflow, Modern Distributed Mega Network Top-Tier Hybrid + 10G Copper Leaf + Fiber + 100G Spine + EVPN/VXLAN, Cloud-First Mega Enterprise Hybrid Core + VXLAN Fabric + EVPN + BGP + Mix Copper/Fiber, HQ ของบริษัทระดับโลก Top-Tier Mega Hybrid Core + Smart Rate Workstation + Fiber + 100G + Layer 3 Full, Mega ISP Business Top-Tier Hybrid Core + Smart Rate + Fiber + 100G + Full Internet BGP + EVPN มาพร้อม Hardware ระดับ Top Premium Top-Tier Hybrid Fixed-Port Switch 1U ประกอบด้วย 40 พอร์ต HPE Smart Rate 100M/1G/2.5G/5G/10G BASE-T (RJ45 Copper Multi-Gig) - รองรับ Cat5e/Cat6/Cat6a Cable, 8 พอร์ต 1G/10G SFP/SFP+ Fiber Uplink (รองรับ SFP 1G + SFP+ 10G Transceivers + DAC + AOC), 4 พอร์ต 40G/100G QSFP+/QSFP28 High-Speed Uplink (รองรับ QSFP+ 40G + QSFP28 100G Transceivers + DAC + AOC), Quad Core ARM Cortex A72 @ 1.8 GHz CPU, 1.76 Tbps Bi-Directional Switching Capacity + 1,309 Mpps Forwarding, Total 52 พอร์ต - Wire-Speed Non-Blocking Performance, AOS-CX Modern Database-Driven Operating System, Fully Distributed Microservices Architecture + Modular Linux + Database-Driven Configuration, Integrated Trusted Platform Module (TPM) + AOS-CX FIPS 140-2 Validated Cryptography + TAA Compliant, Layer 3 FULL - BGP + EVPN + VXLAN + VRF + OSPF + PIM Multicast + IPv6, VSX (Virtual Switching Extension) High Availability + MC LAG + Non-Disruptive Upgrades + Carrier-Class HA, Dynamic Segmentation + User-Based Tunneling + Layer 7 Stateful Firewall + Switch-to-Switch Tunnels, Network Analytics Engine (NAE) + Time Series Database (TSDB) + REST APIs + Python Agents + Ansible/Terraform + IPFIX + WebSocket Subscriptions + TLS-Encrypted Traffic Analytics, Hardware Redundancy - 2 x Hot-Swappable AC PSU (JL600A 1+1 Redundant) + 3 x Hot-Swappable Back-to-Front Airflow Fan Tray (JL714A N+1 Redundant), Back-to-Front (BF) Airflow - เหมาะกับ Reverse Hot/Cold Aisle Data Center Layout, RJ-45 Serial + USB-C Console + RJ-45 Ethernet Out-of-Band Management Port + USB-Type A, ZTP, จัดการผ่าน HPE Aruba Networking Central + CX Mobile App + Aruba NetEdit + Switch Multi-Edit + Aruba Fabric Composer (Software-Defined Leaf-Spine Orchestration), ที่มาพร้อม HPE Limited Lifetime Warranty เป็น Switch รุ่น Top-Tier Hybrid Aggregation/ToR 1U Fixed-Port ของกลุ่ม CX 8100 ที่ลงตัวที่สุดสำหรับ Mega Campus Core + Mega Data Center ToR + Wi-Fi 7 AP Aggregation ที่ต้องการ Maximum Port Density + Mix Smart Rate Copper + Fiber + 100G + Hardware Redundancy + Reverse Airflow + AOS-CX Modern OS + TPM + FIPS 140-2 + TAA Compliant + หมายเหตุสำคัญ: Bundle นี้ใช้ Back-to-Front Airflow (BF) - หากต้องการ Front-to-Back (FB) ใช้รุ่น R9W92A / R9W93A ไม่รองรับ Breakout Cable บนพอร์ต QSFP28 (ต่างจาก R9W86A/R9W88A ที่รองรับ)
คุณสมบัติเด่น (Key Features)
- CX 8100 Series Top-Tier Hybrid Aggregation/ToR 1U Fixed-Port Switch - Model 8100-40XT8XF4C - รุ่นใหญ่ที่สุดในกลุ่ม CX 8100: Max Port Density - 40 Smart Rate Copper + 8 SFP+ Fiber + 4 QSFP28 100G
- Brand HPE Aruba Networking - Gartner Magic Quadrant Leader
- HPE Limited Lifetime Warranty + No Subscription Fees: TCO ต่ำที่สุด
- 1.76 Tbps Bi-Directional Switching Capacity + 1,309 Mpps Forwarding
- 40 พอร์ต HPE Smart Rate 100M/1G/2.5G/5G/10G BASE-T (RJ45 Copper Multi-Gig): Maximum Density - Wi-Fi 7 AP / 10G Server / 10G Workstation / Modern Endpoint
- 8 พอร์ต 1G/10G SFP/SFP+ Fiber Uplink: Fiber Backbone Uplink + Inter-Switch Link
- 4 พอร์ต 40G/100G QSFP+/QSFP28 High-Speed Uplink: Modern Data Center Backbone Speed
- Total 52 พอร์ต ในตัวเดียว 1U - Maximum Port Density
- 1U Compact Form Factor: ประหยัดพื้นที่ Rack
- Bundle Package พร้อมใช้งาน: 2 x Hot-Swappable AC PSU (JL600A) + 3 x Hot-Swappable Fan Tray (JL714A) + 2-Post Rack-Mount Kit
- Hardware Redundancy - PSU 1+1 + Fan N+1: Mission-Critical Network ระดับ 99.999% Uptime
- Back-to-Front (BF) Airflow: เหมาะกับ Reverse Hot/Cold Aisle Data Center Layout
- Quad Core ARM Cortex A72 @ 1.8 GHz CPU
- AOS-CX Modern Database-Driven Operating System: Fully Distributed Microservices Architecture
- Integrated Trusted Platform Module (TPM) + AOS-CX FIPS 140-2 + TAA Compliant: Government Top-Tier Security
- Layer 3 FULL - BGP + EVPN + VXLAN + VRF + OSPF + PBR + BFD + Multicast PIM + IPv6 Dual Stack
- VSX High Availability + MC LAG + Non-Disruptive Upgrades + Carrier-Class HA
- Multicast PIM-SM/DM + IGMP/MLD เต็มรูปแบบ + L3-Multicast Snooping
- Dynamic Segmentation + User-Based Tunneling + Layer 7 Stateful Firewall + Switch-to-Switch Tunnels
- NAE + TSDB + REST APIs + Python Agents + Ansible/Terraform + IPFIX + WebSocket Subscriptions + TLS-Encrypted Traffic Analytics
- HPE Aruba Networking Central + AirWave + Aruba Fabric Composer (Leaf-Spine Orchestration)
- Zero-Touch Provisioning (ZTP) + RJ-45 Serial + USB-C Console + RJ-45 Ethernet OOBM + USB-Type A
- Jumbo Frame 9K bytes + ECN Marking + Lossless Pool + Internal Loopback Testing
- Always-On Architecture + Zero Downtime Upgrades
ข้อมูลทางเทคนิค (Specifications)
| Product Identification | |
| SKU / Part Number | R9W93A |
| Full Product Name | HPE Aruba Networking CX 8100 40x10G Base-T 8x10G SFP+ 4x40/100G QSFP28 BF Airflow 3Fan 2AC PSU Switch Bundle |
| Brand | HPE Aruba Networking (Hewlett Packard Enterprise) |
| Product Series | HPE Aruba Networking CX 8100 Switch Series - Next-Generation Campus Core/Aggregation + Data Center ToR Switch Series - Top-Tier Model |
| Product Type | Top-Tier Hybrid Fixed-Port Layer 3 Managed Aggregation/Top-of-Rack (ToR) Switch (1U Rack-Mountable Bundle) |
| Model Variant | CX 8100-40XT8XF4C (40 x Smart Rate 100M/1/2.5/5/10G BASE-T + 8 x 10G SFP+ + 4 x 100G QSFP28) - รุ่นใหญ่ที่สุดในกลุ่ม |
| Hardware Platform | |
| CPU | Quad Core ARM Cortex A72 @ 1.8 GHz |
| ASIC | HPE Aruba ASIC (Modern Generation) |
| Architecture | Fully Distributed Microservices Architecture + Modular Linux + Database-Driven Configuration |
| Operating System | AOS-CX (HPE Aruba Networking CX Switch Operating System) - Modern Database-Driven Linux OS |
| Security Hardware | Integrated Trusted Platform Module (TPM) + FIPS 140-2 Validated Cryptography + TAA Compliant |
| Microservices | Software Processes ทุกตัวรันเป็น Microservices + State Database Communication - Fault Isolation |
| Performance | |
| Switching Capacity | 1.76 Tbps Bi-Directional (Non-Blocking) |
| Forwarding Rate | 1,309 Mpps (Wire-Speed) |
| Throughput | Wire-Speed ทุกพอร์ต |
| Latency | Very Low Latency |
| Network Interfaces / Ports (52 Total Ports - Top-Tier Hybrid Configuration) | |
| HPE Smart Rate Multi-Gig Copper Ports (RJ45) | 40 x 100M/1G/2.5G/5G/10G BASE-T (RJ45 Copper Multi-Gig - Smart Rate) - Maximum Density |
| SFP/SFP+ Uplink Ports (1G/10G Fiber) | 8 x 1G/10G SFP/SFP+ Fiber - Fiber Uplink + Inter-Switch Link |
| QSFP+/QSFP28 Uplink Ports (40G/100G) | 4 x 40G/100G QSFP+/QSFP28 Multi-Speed |
| Total Ports | 52 x Ports (40 Smart Rate + 8 SFP+ + 4 QSFP28) - Maximum Density |
| QSA28 Adapter Support | รองรับ QSA28 Adapter - แปลง QSFP28 เป็น SFP28 25G |
| PoE Capability | Non-PoE / Data Only (รุ่นนี้) |
| Breakout Cable Support | ไม่รองรับ Breakout Cable บน 8100-40XT8XF4C (R9W93A) - หากต้องการ Breakout ใช้รุ่น R9W86A/R9W88A |
| HPE Smart Rate Multi-Gigabit (40 พอร์ต RJ45) | |
| Smart Rate Speed Negotiation | 100M / 1G / 2.5G / 5G / 10G (Auto-Negotiation) |
| Smart Rate Cable Standard | Cat5e (1G/2.5G), Cat6 (5G/10G 55m), Cat6a (10G 100m) |
| Smart Rate Use Cases | Wi-Fi 6 AP (2.5G Uplink), Wi-Fi 6E AP (2.5G Uplink), Wi-Fi 7 AP (5G/10G Uplink), 10G Server Copper, 10G High-Performance Workstation, 10G NAS/Storage |
| Transceiver Support | |
| SFP/SFP+ Transceiver (1G/10G) | SFP 1G SR/LR + Copper SFP RJ-45 1G (1GBASE-T) + SFP+ 10G SR/LR/ER + DAC + AOC |
| QSFP+ Transceiver (40G) | QSFP+ 40G SR4/LR4/ER4 + DAC/AOC |
| QSFP28 Transceiver (100G) | QSFP28 100G SR4/LR4/ER4/CWDM4/PSM4 + DAC/AOC |
| Layer 2 / Layer 3 Features (AOS-CX) | |
| Layer 2 | IEEE 802.1Q VLAN, Voice VLAN, Private VLAN (Isolated/Community/Primary), STP, RSTP, MSTP, RPVST+, LACP (802.3ad), UDLD, Loop Protect, BPDU Guard, LLDP, LLDP-MED, Jumbo Frame 9K bytes |
| Routing Protocols | BGP + EVPN + VXLAN + VRF + OSPF (IPv4/IPv6) + Static Routing |
| Advanced L3 | PBR + BFD + IP SLA + VRRP v2/v3 (IPv4 + IPv6) |
| IPv4 / IPv6 | IPv4/IPv6 Dual Stack |
| Multicast | IGMP v1/v2/v3, MLD v1/v2, PIM-SM/DM (IPv4/IPv6) + MSDP + L3-Multicast + IGMP/MLD Snooping |
| Congestion Management | ECN Marking (Congestion Experienced) + Periodic Flushing + Advanced Lossless Pool Configuration |
| VSX (Virtual Switching Extension) - High Availability | |
| VSX Cluster | 2-Member Active-Active + Multi-chassis Link Aggregation (MC LAG) |
| VSX Live Upgrades | รองรับ - Non-Disruptive Fast Upgrades + Zero Downtime Upgrades |
| Always-On Architecture | รองรับ - Continual State Synchronization + Superior Fault Tolerance |
| Dynamic Segmentation | |
| User-Based Tunneling (UBT) | รองรับ |
| Role-based Access Control | กำหนด Policy ตาม Role |
| Layer 7 Stateful Firewall | รองรับ - Application-Aware Firewall Enforcement |
| Switch-to-Switch Tunnels | รองรับ + VXLAN-to-VRF Mapping + Multi-Tenant Support |
| NAE / TSDB / Automation | |
| NAE | Network Analytics Engine - Real-time Monitoring + Automated Troubleshooting + Python Agents + REST APIs + TLS-Encrypted Traffic Analytics + Embedded ใน Switch ทุกตัว |
| TSDB | Time Series Database |
| Telemetry | IPFIX (Internet Protocol Flow Information Export) + WebSocket Subscriptions for Event-Driven Automation |
| Automation | Ansible, Python, Terraform, REST API |
| Aruba Fabric Composer | Software-Defined Leaf-Spine Orchestration Solution |
| Security / Authentication | |
| Hardware Security | Integrated Trusted Platform Module (TPM) |
| Cryptography | FIPS 140-2 Validated Cryptography |
| Compliance | TAA Compliant (Trade Agreements Act) |
| ACL | IPv4/IPv6 ACL + Object Groups + Control Plane Protection (SSH, SNMP, NTP, Web) |
| Authentication | 802.1X, Mac-Auth, LUR (Local User Roles), DUR (Downloadable User Roles), Port-Access Policy, Static Port Filtering, RADIUS, TACACS+ |
| SCEP | Simple Certificate Enrollment Protocol - PKI Management |
| QoS / Management | |
| QoS | CoS (802.1p), ToS, DSCP, sFlow + Advanced QoS |
| Cloud Management | HPE Aruba Networking Central (Cloud + On-Premise) + CX Mobile App + Aruba NetEdit + Switch Multi-Edit Software + AirWave + Aruba Fabric Composer |
| SNMP | SNMP v2c/v3 + RMON |
| Web GUI / CLI / REST API | รองรับครบ + Python / Ansible / Terraform |
| Management Interfaces | RJ-45 Serial Console + USB-C Console + RJ-45 Ethernet Out-of-Band Management Port + USB-Type A |
| ZTP | Zero-Touch Provisioning |
| Power Supply (Hot-Swappable Redundant 1+1) | |
| PSU Type | 2 x Hot-Swappable AC Power Supply (Bundle รวม - JL600A x 2) |
| PSU Redundancy | 1+1 Active-Standby Redundancy |
| Input Voltage | 100-240V AC (Universal) |
| Power Cord | รวมในชุด |
| Fan / Cooling (Hot-Swappable Redundant N+1) | |
| Fan Tray | 3 x Hot-Swappable Fan Tray (Bundle รวม - JL714A x 3) |
| Airflow Direction | Back-to-Front (BF) Airflow - เหมาะกับ Reverse Hot/Cold Aisle Data Center Layout |
| Fan Redundancy | N+1 Redundancy |
| Compliant Standards | |
| IEEE Standards | 802.3, 802.1D, 802.1Q, 802.3ab, 802.3bz (Multi-Gig), 802.1p, 802.3x, 802.3ad, 802.1w, 802.1s, 802.3az, 802.3ae (10GbE), 802.3an (10GBASE-T), 802.3ba (40/100GbE) |
| Safety | EN 62368-1, UL 62368-1, CSA C22.2 No. 62368-1, IEC 62368-1 |
| Physical Specifications | |
| Form Factor | 1U Rack-Mountable |
| Rack-Mount Kit | 2-Post Rack-Mount Kit รวมในชุด (4-Post ต้องสั่งซื้อแยก) |
| Target Use Cases | |
| Recommended For | Top-Tier Mega Campus Core/Aggregation Layer Hybrid Maximum Port Density + 100G Uplink + Reverse Airflow, Mega Data Center Top-of-Rack (ToR) 10G Server Switch สูงสุด 40 Copper + 8 Fiber + 100G Uplink, Wi-Fi 7 AP Mega Aggregation Switch + Smart Rate 5G/10G AP Uplink 40 พอร์ต + 100G Backbone, Mega Workstation Cluster 10G Copper + Fiber + 100G Backbone, AI/ML Mega Compute Cluster + 10G Copper Compute Node 40 ตัว + 100G Backbone, Modern Distributed Mega Network Aggregation Top-Tier Hybrid + Reverse Airflow, Mega Service Provider Edge Aggregation Smart Rate + Fiber + 100G Peering + BGP + EVPN + VRF, Enterprise Top-Tier Mega Campus Core Hybrid (Copper Smart Rate + Fiber Mix) + 100G Inter-Building, Mega Campus Multi-Building Backbone + Smart Rate Wi-Fi 7 AP + 100G, Government Top-Tier Mega Core + Smart Rate Server + Fiber + 100G + TPM + FIPS + TAA + OSPF/BGP + EVPN + Reverse Airflow Compliance, Financial Banking Mega HQ + Trading Floor 10G Copper Workstation + 100G + EVPN/VXLAN + Reverse Airflow Data Center, Healthcare Mega Hospital Mega Data Center + 10G DICOM Workstation Copper + 100G + Layer 3 Multicast, Education มหาวิทยาลัย Mega Research Data Center + 10G Research Compute Copper + 100G + BGP, Manufacturing Smart Factory Top-Tier Mega Data Center + 10G Copper Edge Compute + 100G + EVPN, Hospitality Luxury Mega Hotel/Convention Mega Data Center + Smart Rate Multi-Gig + Fiber + 100G + Layer 3, Stadium/Arena/Convention Center Mega Venue Mega Core + Smart Rate Wi-Fi 7 + Fiber + 100G + BGP, Retail Flagship Mega Mall Multi-Floor Mega Core + Smart Rate + Fiber + 100G + Layer 3, Co-Working Premium Mega Tower Core + Wi-Fi 7 AP + 100G, Smart Building Mega Tower Mega Core + Smart Rate IoT + 100G + Multicast, Mission-Critical Top-Tier Mega Network Core + Smart Rate + Fiber + 100G + VSX Active-Active + Carrier-Class HA, Modern Distributed Mega Network Top-Tier Hybrid + 10G Copper Leaf + Fiber + 100G Spine + EVPN/VXLAN, Cloud-First Mega Enterprise Hybrid Core + VXLAN Fabric + EVPN + BGP + Mix Copper/Fiber, HQ Top-Tier Mega Hybrid Core + Smart Rate Workstation + Fiber + 100G + Layer 3 Full, Mega ISP Business Top-Tier Hybrid Core + Smart Rate + Fiber + 100G + Full Internet BGP + EVPN |
| Package Contents (Bundle) | |
| In the Box | R9W93A 8100-40XT8XF4C Switch x 1 (Base Switch), 2 x Hot-Swappable AC PSU (JL600A x 2), 3 x Hot-Swappable Back-to-Front Airflow Fan Tray (JL714A x 3), 2-Post Rack-Mount Kit, AC Power Cord (US/EU/UK ตาม Region), Quick Start Guide, Warranty Card Required (แยกซื้อ): SFP/SFP+ Transceivers (1G/10G Fiber + DAC/AOC + 1GBASE-T SFP RJ-45 Copper), QSFP+/QSFP28 Transceivers (40G/100G Fiber + DAC/AOC), Cat5e/Cat6/Cat6a Cable สำหรับ Smart Rate, 4-Post Rack-Mount Kit (Optional), Aruba Central License (Optional) |
| Warranty | |
| Warranty Policy | HPE Limited Lifetime Warranty (รับประกันตลอดอายุการใช้งาน) + Switch Software Embedded - No Software License Fees + No Subscription Required |
| Software Updates | ฟรี Software Updates ตลอดอายุการใช้งาน |
การใช้งานที่เหมาะสม (Use Cases)
- Top-Tier Mega Campus Core/Aggregation Layer Hybrid Maximum Port Density + 100G Uplink + Reverse Airflow: Mega Campus Core ที่ต้องการ Maximum Port Density - 40 Smart Rate Copper + 8 SFP+ Fiber + 4 QSFP28 100G ใน 1U เดียว + Back-to-Front Airflow
- Mega Data Center Top-of-Rack (ToR) 10G Server Switch สูงสุด 40 Copper + 8 Fiber + 100G Uplink: Mega ToR ที่ต้องการ Maximum Port Density + Reverse Airflow (เหมาะกับ Data Center Layout บางแบบ)
- Wi-Fi 7 AP Mega Aggregation Switch + Smart Rate 5G/10G AP Uplink 40 พอร์ต + 100G Backbone: Mega Wi-Fi 7 Deployment ที่ต้องการ 40 พอร์ต Smart Rate ต่อ Switch + 100G Backbone
- AI/ML Mega Compute Cluster + 10G Copper Compute Node 40 ตัว + 100G Backbone: Mega AI/ML Cluster ที่ใช้ 10G Copper Compute Node + 100G Inter-Compute
เหตุผลที่ควรเลือก HPE Aruba R9W93A
- CX 8100 Series Top-Tier Hybrid Aggregation/ToR 1U Fixed-Port Switch - Model 8100-40XT8XF4C - รุ่นใหญ่ที่สุดในกลุ่ม CX 8100
- Brand HPE Aruba Networking - Gartner Magic Quadrant Leader
- HPE Limited Lifetime Warranty + No Subscription Fees: TCO ต่ำที่สุด
- 1.76 Tbps Bi-Directional Switching Capacity + 1,309 Mpps Forwarding
- 40 พอร์ต HPE Smart Rate 100M/1G/2.5G/5G/10G BASE-T (RJ45 Copper Multi-Gig) - Maximum Density
- 8 พอร์ต 1G/10G SFP/SFP+ Fiber Uplink + Inter-Switch Link
- 4 พอร์ต 40G/100G QSFP+/QSFP28 High-Speed Uplink
- Total 52 พอร์ต ในตัวเดียว 1U - Maximum Port Density
- 1U Compact Form Factor - ประหยัดพื้นที่ Rack
- Bundle Package พร้อมใช้งาน - 2 PSU + 3 Fan + Rack Kit รวมในชุด
- Hardware Redundancy - PSU 1+1 + Fan N+1 - Hot-Swappable ทั้งหมด
- Back-to-Front (BF) Airflow - เหมาะกับ Reverse Hot/Cold Aisle Data Center Layout
- Quad Core ARM Cortex A72 @ 1.8 GHz CPU
- AOS-CX Modern Database-Driven OS + Fully Distributed Microservices Architecture
- Integrated TPM + FIPS 140-2 Validated Cryptography + TAA Compliant: Government Top-Tier Security
- Layer 3 FULL - BGP + EVPN + VXLAN + VRF + OSPF + PBR + BFD + Multicast PIM + IPv6
- VSX High Availability + MC LAG + Non-Disruptive Upgrades + Zero Downtime
- Multicast PIM-SM/DM + IGMP/MLD ครบรูปแบบ + L3-Multicast Snooping
- Dynamic Segmentation + UBT + Layer 7 Stateful Firewall + Switch-to-Switch Tunnels
- NAE + TSDB + REST APIs + Python Agents + Ansible/Terraform + IPFIX + WebSocket + TLS-Encrypted Analytics
- HPE Aruba Networking Central + AirWave + Aruba Fabric Composer
- RJ-45 Serial + USB-C Console + RJ-45 Ethernet OOBM + USB-Type A + ZTP
- Jumbo Frame 9K bytes + ECN Marking + Lossless Pool
- Always-On Infrastructure - Continual State Synchronization + Superior Fault Tolerance
- รับประกันคุณภาพ + นำเข้าอย่างเป็นทางการ: สินค้านำเข้าจาก HPE Official Channel + บริการหลังการขายโดยทีมผู้เชี่ยวชาญ
สนใจสั่งซื้อ HPE Aruba Networking CX 8100 40-Port 10G Base-T + 8-Port 10G SFP+ + 4-Port 40G/100G QSFP28 BF Airflow 3Fan 2AC PSU Switch Bundle (R9W93A) หรือสอบถามข้อมูล CX 8100 Series Top-Tier Hybrid Aggregation/ToR 1U Fixed-Port Layer 3 Managed Switch รุ่นใหญ่ที่สุดในกลุ่ม + 1.76 Tbps Bi-Directional Switching Capacity + 1,309 Mpps Forwarding + Quad Core ARM Cortex A72 @ 1.8 GHz + 40 พอร์ต HPE Smart Rate 100M/1G/2.5G/5G/10G BASE-T (RJ45 Copper Multi-Gig) Maximum Density + 8 พอร์ต 1G/10G SFP/SFP+ Fiber Uplink + 4 พอร์ต 40G/100G QSFP+/QSFP28 High-Speed Uplink + Total 52 พอร์ต ในตัวเดียว 1U + QSA28 Adapter Support + 1U Compact Form Factor + Bundle 2 x Hot-Swappable AC PSU (JL600A) + 3 x Hot-Swappable Back-to-Front Airflow Fan Tray (JL714A) + 2-Post Rack-Mount Kit + Hardware Redundancy PSU 1+1 + Fan N+1 + Back-to-Front (BF) Airflow + AOS-CX Modern Database-Driven OS + Fully Distributed Microservices Architecture + Integrated TPM + FIPS 140-2 Validated Cryptography + TAA Compliant + Layer 3 FULL (BGP + EVPN + VXLAN + VRF + OSPF) + PBR + BFD + Multicast PIM + IPv6 Dual Stack + VSX High Availability + MC LAG + Non-Disruptive Upgrades + Zero Downtime + Always-On Architecture + Dynamic Segmentation via User-Based Tunneling + Layer 7 Stateful Firewall + Switch-to-Switch Tunnels + VXLAN-to-VRF Mapping + NAE Embedded + TSDB + IPFIX + WebSocket + TLS-Encrypted Traffic Analytics + Aruba Networking Central + Aruba Fabric Composer (Leaf-Spine Orchestration) + AirWave + ZTP + REST APIs + Python Agents + Ansible/Terraform + Jumbo Frame 9K + ECN Marking + Lossless Pool + HPE Limited Lifetime Warranty สำหรับ Top-Tier Mega Campus Core/Aggregation Layer Hybrid Maximum Port Density + 100G Uplink + Reverse Airflow, Mega Data Center ToR 10G Server Switch สูงสุด 40 Copper + 8 Fiber + 100G Uplink, Wi-Fi 7 AP Mega Aggregation Switch + Smart Rate 5G/10G AP Uplink 40 พอร์ต + 100G Backbone, Mega Workstation Cluster 10G Copper + Fiber + 100G, AI/ML Mega Compute Cluster + 10G Copper Compute Node 40 ตัว + 100G Backbone, Modern Distributed Mega Network Aggregation Top-Tier Hybrid + Reverse Airflow, Mega Service Provider Edge Aggregation Smart Rate + Fiber + 100G Peering + BGP + EVPN + VRF, Enterprise Top-Tier Mega Campus Core Hybrid + 100G Inter-Building, Mega Campus Multi-Building Backbone + Smart Rate Wi-Fi 7 AP + 100G, Government Top-Tier Mega Core + Smart Rate Server + Fiber + 100G + TPM + FIPS + TAA + Reverse Airflow Compliance, Financial Banking Mega HQ + Trading Floor 10G Copper Workstation + 100G + EVPN/VXLAN + Reverse Airflow, Healthcare Mega Hospital Mega Data Center + 10G DICOM Workstation Copper + 100G + Layer 3 Multicast, Education มหาวิทยาลัย Mega Research Data Center + 10G Research Compute Copper + 100G + BGP, Manufacturing Smart Factory Top-Tier Mega Data Center + 10G Copper Edge Compute + 100G + EVPN, Hospitality Luxury Mega Hotel/Convention Mega Data Center + Smart Rate + Fiber + 100G + Layer 3, Stadium/Arena/Convention Center Mega Venue Mega Core + Smart Rate Wi-Fi 7 + Fiber + 100G + BGP, Retail Flagship Mega Mall Multi-Floor Mega Core + Smart Rate + Fiber + 100G, Co-Working Premium Mega Tower Core + Wi-Fi 7 AP + 100G, Smart Building Mega Tower Mega Core + Smart Rate IoT + 100G + Multicast, Mission-Critical Top-Tier Mega Network Core + Smart Rate + Fiber + 100G + VSX Active-Active + Carrier-Class HA, Modern Distributed Mega Network Top-Tier Hybrid + 10G Copper Leaf + Fiber + 100G Spine + EVPN/VXLAN, Cloud-First Mega Enterprise Hybrid Core + VXLAN + EVPN + BGP + Mix Copper/Fiber, HQ Top-Tier Mega Hybrid Core + Smart Rate Workstation + Fiber + 100G + Layer 3 Full, Mega ISP Business Top-Tier Hybrid Core + Smart Rate + Fiber + 100G + Full Internet BGP + EVPN เพิ่มเติม ติดต่อทีมผู้เชี่ยวชาญของเราได้ทันที พร้อมบริการให้คำปรึกษา ออกแบบ CX 8100 Switch Configuration + Aruba Central Cloud + VSX Active-Active Cluster + EVPN-VXLAN Fabric + BGP/OSPF + Dynamic Segmentation + Aruba Fabric Composer Leaf-Spine Orchestration + Hybrid Copper/Fiber Aggregation + 100G Backbone + Reverse Airflow Data Center Deployment, จัดหา CX 8100 Switch (R9W93A) + SFP/SFP+ 1G/10G Transceivers + QSFP+/QSFP28 40G/100G Transceivers + DAC/AOC + Cat5e/Cat6/Cat6a Cable สำหรับ Smart Rate + Aruba Central License + Aruba Fabric Composer และติดตั้งครบวงจร
