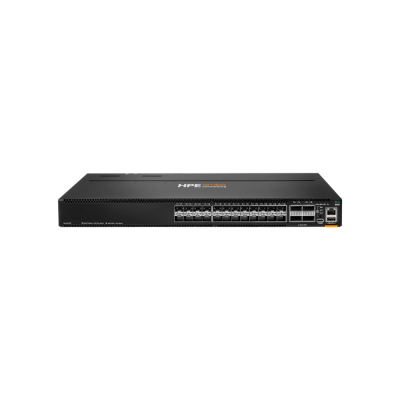

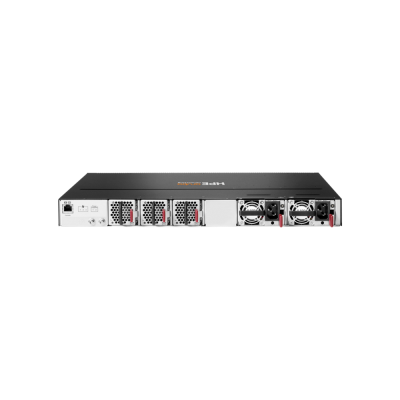

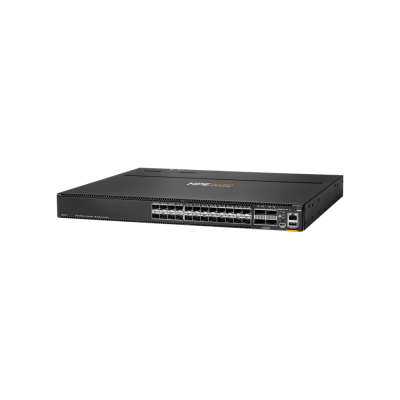

"R9W88A" HPE Aruba CX 8100 24p 10GBase-T 4p SFP+ 4p QSFP28 100G FB Switch
SKU : R9W88A
จำนวน
แบรนด์: Aruba
รายละเอียดสินค้า
ข้อมูลทางเทคนิค (Specifications)
| Product Identification | |
| SKU / Part Number | R9W88A |
| Full Product Name | HPE Aruba Networking CX 8100 24x10G Base-T 4x10G SFP+ 4x40/100G QSFP28 FB Airflow 3Fan 2AC PSU Switch Bundle |
| Brand | HPE Aruba Networking (Hewlett Packard Enterprise) |
| Product Series | HPE Aruba Networking CX 8100 Switch Series - Next-Generation Campus Core/Aggregation + Data Center ToR Switch Series |
| Product Type | Hybrid Fixed-Port Layer 3 Managed Aggregation/Top-of-Rack (ToR) Switch (1U Rack-Mountable Bundle) |
| Model Variant | CX 8100-24XT4XF4C (24 x Smart Rate 100M/1/2.5/5/10G BASE-T + 4 x 10G SFP+ + 4 x 100G QSFP28) |
| Hardware Platform | |
| CPU | Quad Core ARM Cortex A72 @ 1.8 GHz |
| ASIC | HPE Aruba ASIC (Modern Generation) |
| Architecture | Fully Distributed Microservices Architecture + Modular Linux + Database-Driven Configuration |
| Operating System | AOS-CX (HPE Aruba Networking CX Switch Operating System) - Modern Database-Driven Linux OS |
| Security Hardware | Integrated Trusted Platform Module (TPM) + FIPS 140-2 Validated Cryptography + TAA Compliant |
| Microservices | Software Processes ทุกตัวรันเป็น Microservices + State Database Communication - Fault Isolation |
| Performance | |
| Switching Capacity | 1.36 Tbps (Non-Blocking) |
| Forwarding Rate | 1,309 Mpps (Wire-Speed) |
| Throughput | Wire-Speed ทุกพอร์ต |
| Latency | Very Low Latency |
| Network Interfaces / Ports (32 Total Ports - Hybrid Configuration) | |
| HPE Smart Rate Multi-Gig Copper Ports (RJ45) | 24 x 100M/1G/2.5G/5G/10G BASE-T (RJ45 Copper Multi-Gig - Smart Rate) |
| SFP/SFP+ Uplink Ports (1G/10G Fiber) | 4 x 1G/10G SFP/SFP+ Fiber (Min=0/Max=4 SFP/SFP+ Transceivers) |
| QSFP+/QSFP28 Uplink Ports (40G/100G) | 4 x 40G/100G QSFP+/QSFP28 (Min=0/Max=4 QSFP+/QSFP28 Transceivers) |
| Total Ports | 32 x Ports (24 Smart Rate + 4 SFP+ + 4 QSFP28) |
| QSA28 Adapter Support | รองรับ QSA28 Adapter (Min=0/Max=6) - แปลง QSFP28 เป็น SFP28 25G |
| PoE Capability | Non-PoE / Data Only (รุ่นนี้) |
| Breakout Cable Support | รองรับ Breakout Cable (4x10G/4x25G) บนพอร์ต QSFP28 - 1 QSFP28 100G เป็น 4x10G หรือ 4x25G |
| HPE Smart Rate Multi-Gigabit (24 พอร์ต RJ45) | |
| Smart Rate Speed Negotiation | 100M / 1G / 2.5G / 5G / 10G (Auto-Negotiation) |
| Smart Rate Cable Standard | Cat5e (1G/2.5G), Cat6 (5G/10G 55m), Cat6a (10G 100m) |
| Smart Rate Use Cases | Wi-Fi 6 AP (2.5G Uplink), Wi-Fi 6E AP (2.5G Uplink), Wi-Fi 7 AP (5G/10G Uplink), 10G Server Copper, 10G High-Performance Workstation, 10G NAS/Storage |
| Transceiver Support | |
| SFP/SFP+ Transceiver (1G/10G) | SFP 1G SR/LR + Copper SFP RJ-45 1G + 1GBASE-T (รองรับ 1G บน SFP+ Ports) + SFP+ 10G SR/LR/ER + DAC + AOC |
| QSFP+ Transceiver (40G) | QSFP+ 40G SR4/LR4/ER4 + DAC/AOC + Breakout 4x10G |
| QSFP28 Transceiver (100G) | QSFP28 100G SR4/LR4/ER4/CWDM4/PSM4 + DAC/AOC + Breakout 4x25G |
| Layer 2 / Layer 3 Features (AOS-CX) | |
| Layer 2 | IEEE 802.1Q VLAN, Voice VLAN, Private VLAN (Isolated/Community/Primary), STP, RSTP, MSTP, RPVST+, LACP (802.3ad), UDLD, Loop Protect, BPDU Guard, LLDP, LLDP-MED, Jumbo Frame 9K bytes |
| Routing Protocols | BGP + EVPN + VXLAN + VRF + OSPF (IPv4/IPv6) + Static Routing |
| Advanced L3 | PBR + BFD + IP SLA + VRRP v2/v3 (IPv4 + IPv6) |
| IPv4 / IPv6 | IPv4/IPv6 Dual Stack |
| Multicast | IGMP v1/v2/v3, MLD v1/v2, PIM-SM/DM (IPv4/IPv6) + MSDP + L3-Multicast + IGMP/MLD Snooping |
| Congestion Management | ECN Marking (Congestion Experienced) + Periodic Flushing + Advanced Lossless Pool Configuration |
| VSX (Virtual Switching Extension) - High Availability | |
| VSX Cluster | 2-Member Active-Active + Multi-chassis Link Aggregation (MC LAG) |
| VSX Live Upgrades | รองรับ - Non-Disruptive Fast Upgrades + Zero Downtime Upgrades |
| Always-On Architecture | รองรับ - Continual State Synchronization + Superior Fault Tolerance |
| Dynamic Segmentation | |
| User-Based Tunneling (UBT) | รองรับ |
| Role-based Access Control | กำหนด Policy ตาม Role |
| Layer 7 Stateful Firewall | รองรับ - Application-Aware Firewall Enforcement |
| Switch-to-Switch Tunnels | รองรับ + VXLAN-to-VRF Mapping + Multi-Tenant Support |
| NAE / TSDB / Automation | |
| NAE | Network Analytics Engine - Real-time Monitoring + Automated Troubleshooting + Python Agents + REST APIs + TLS-Encrypted Traffic Analytics + Embedded ใน Switch ทุกตัว |
| TSDB | Time Series Database |
| Telemetry | IPFIX (Internet Protocol Flow Information Export) + WebSocket Subscriptions for Event-Driven Automation |
| Automation | Ansible, Python, Terraform, REST API |
| Aruba Fabric Composer | Software-Defined Leaf-Spine Orchestration Solution |
| Security / Authentication | |
| Hardware Security | Integrated Trusted Platform Module (TPM) |
| Cryptography | FIPS 140-2 Validated Cryptography |
| Compliance | TAA Compliant (Trade Agreements Act) |
| ACL | IPv4/IPv6 ACL + Object Groups + Control Plane Protection (SSH, SNMP, NTP, Web) |
| Authentication | 802.1X, Mac-Auth, LUR (Local User Roles), DUR (Downloadable User Roles), Port-Access Policy, Static Port Filtering, RADIUS, TACACS+ |
| SCEP | Simple Certificate Enrollment Protocol - PKI Management |
| QoS / Management | |
| QoS | CoS (802.1p), ToS, DSCP, sFlow + Advanced QoS |
| Cloud Management | HPE Aruba Networking Central (Cloud + On-Premise) + CX Mobile App + Aruba NetEdit + Switch Multi-Edit Software + AirWave + Aruba Fabric Composer |
| SNMP | SNMP v2c/v3 + RMON |
| Web GUI / CLI / REST API | รองรับครบ + Python / Ansible / Terraform |
| Management Interfaces | RJ-45 Serial Console + USB-C Console + RJ-45 Out-of-Band Management Port |
| ZTP | Zero-Touch Provisioning |
| Power Supply (Hot-Swappable Redundant 1+1) | |
| PSU Type | 2 x Hot-Swappable AC Power Supply (Bundle รวม - JL600A x 2) |
| PSU Redundancy | 1+1 Active-Standby Redundancy |
| Input Voltage | 100-240V AC (Universal) |
| Power Cord | รวมในชุด |
| Fan / Cooling (Hot-Swappable Redundant N+1) | |
| Fan Tray | 3 x Hot-Swappable Fan Tray (Bundle รวม - JL714A x 3) |
| Airflow Direction | Front-to-Back (FB) Airflow - เหมาะกับ Hot Aisle / Cold Aisle Data Center Layout มาตรฐาน |
| Fan Redundancy | N+1 Redundancy |
| Compliant Standards | |
| IEEE Standards | 802.3, 802.1D, 802.1Q, 802.3ab, 802.3bz (Multi-Gig), 802.1p, 802.3x, 802.3ad, 802.1w, 802.1s, 802.3az, 802.3ae (10GbE), 802.3an (10GBASE-T), 802.3ba (40/100GbE) |
| Safety | EN 62368-1, UL 62368-1, CSA C22.2 No. 62368-1, IEC 62368-1 |
| Physical Specifications | |
| Form Factor | 1U Rack-Mountable |
| Rack-Mount Kit | 2-Post Rack-Mount Kit รวมในชุด (4-Post ต้องสั่งซื้อแยก) |
| Package Contents (Bundle) | |
| In the Box | R9W88A 8100-24XT4XF4C Switch x 1 (Base Switch), 2 x Hot-Swappable AC PSU (JL600A x 2), 3 x Hot-Swappable Front-to-Back Airflow Fan Tray (JL714A x 3), 2-Post Rack-Mount Kit, AC Power Cord (US/EU/UK ตาม Region), Quick Start Guide, Warranty Card Required (แยกซื้อ): SFP/SFP+ Transceivers (1G/10G Fiber + DAC/AOC), QSFP+/QSFP28 Transceivers (40G/100G Fiber + DAC/AOC + Breakout Cable), Cat5e/Cat6/Cat6a Cable สำหรับ Smart Rate, 4-Post Rack-Mount Kit (Optional), Aruba Central License (Optional) |
| Warranty | |
| Warranty Policy | HPE Limited Lifetime Warranty (รับประกันตลอดอายุการใช้งาน) + Switch Software Embedded - No Software License Fees + No Subscription Required |
| Software Updates | ฟรี Software Updates ตลอดอายุการใช้งาน |
