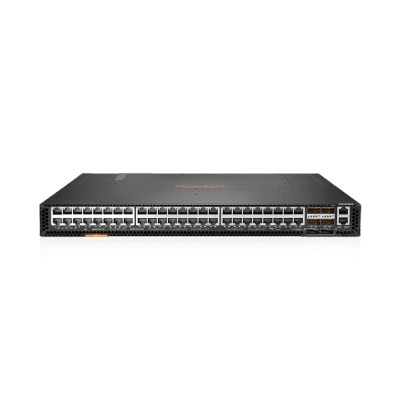

"JL581A" HPE Aruba CX 8320 48p 1G/10GBASE-T 6p 40G QSFP+ X472 5Fan 2PSU Switch
SKU : JL581A
จำนวน
คำอธิบายสินค้าแบบย่อ
JL581A: HPE Aruba Networking 8320 48p 1G/10GBASE‑T and 6p 40G QSFP+ with X472 5 Fans 2 Power Supply Switch Bundle
แบรนด์: Aruba
รายละเอียดสินค้า
ข้อมูลทางเทคนิค (Specifications)
| Product Identification | |
| SKU / Part Number | JL581A |
| Full Product Name | HPE Aruba Networking CX 8320 48p 1G/10GBASE-T 6p 40G QSFP+ X472 5 Fans 2 Power Supply Switch Bundle |
| Brand | HPE Aruba Networking (Hewlett Packard Enterprise) |
| Product Series | HPE Aruba Networking CX 8320 Switch Series - Game-Changing Mobile First Switching Portfolio - Enterprise Core + Aggregation |
| Product Type | Fixed-Port Layer 3 Managed Campus Core/Aggregation + Data Center ToR Switch (1U Rack-Mountable Bundle) |
| Model Variant | CX 8320-48p 1G/10GBASE-T + 6p 40G QSFP+ (Pure 10G Copper Density) |
| Hardware Platform | |
| Architecture | Micro-Services Style Modular Architecture + Database-Driven Configuration + Individual Process Re-Startability |
| Operating System | AOS-CX (ArubaOS-CX) - Modern Software System สำหรับ Enterprise Core - Automates Critical Network Tasks + Zero-Service Disruption |
| Compliance | TAA Compliant (Trade Agreements Act) |
| Performance | |
| Switching Capacity | 2.5 Tbps (Non-Blocking - สูงกว่า CX 8100) |
| Forwarding Rate | 1,905 Mpps (Wire-Speed - สูงกว่า CX 8100) |
| Throughput | Line Rate 10GbE/40GbE - Wire-Speed ทุกพอร์ต |
| Latency | Very Low Latency - เหมาะสำหรับ Low-Latency Trading + Real-Time Application |
| Full Internet Routes | รองรับ Full Internet BGP Routes (Carrier-Class) |
| Network Interfaces / Ports (54 Total Ports) | |
| 10GBASE-T Downlink Ports (1G/10G Copper RJ45) | 48 x 1G/10GBASE-T (RJ45 Copper) - Pure 10G Copper Density |
| QSFP+ Uplink Ports (40G) | 6 x 40G QSFP+ Multi-Speed (40G QSFP+ + DAC + AOC + Breakout 4x10G) |
| Total Ports | 54 x Ports (48 10GBASE-T + 6 QSFP+ 40G) |
| PoE Capability | Non-PoE / Data Only |
| Breakout Cable Support | รองรับ Breakout Cable (4x10G) บนพอร์ต QSFP+ - 1 QSFP+ 40G เป็น 4x10G |
| 10GBASE-T Copper Multi-Gig (48 พอร์ต RJ45) | |
| Speed Negotiation | 1G / 10G (Auto-Negotiation) |
| Cable Standard | Cat5e (1G), Cat6 (10G 55m), Cat6a (10G 100m) |
| 10GBASE-T Use Cases | 10G Server Copper, 10G High-Performance Workstation, 10G NAS/Storage, Cost-Effective 10G Density |
| Transceiver Support | |
| QSFP+ Transceiver (40G) | QSFP+ 40G SR4/LR4/ER4 + DAC/AOC + Breakout 4x10G |
| Layer 2 / Layer 3 Features (AOS-CX) | |
| Layer 2 | IEEE 802.1Q VLAN, Voice VLAN, STP, RSTP, MSTP, RPVST+, LACP (802.3ad), UDLD, Loop Protect, BPDU Guard, LLDP, LLDP-MED |
| Routing Protocols | BGP + OSPF + VRF + IPv6 + Static Routing |
| Full Internet Routes | รองรับ Full Internet BGP Routes (Carrier-Class) |
| Advanced L3 | PBR + BFD + VRRP v2/v3 (IPv4 + IPv6) |
| IPv4 / IPv6 | IPv4/IPv6 Dual Stack |
| Multicast | IGMP v1/v2/v3, MLD v1/v2, PIM-SM/DM (IPv4/IPv6) |
| VSX (Virtual Switching Extension) - High Availability | |
| VSX Design | Designed Ground Up - Continuous Availability + Virtualization + Simplicity สำหรับ Network Core |
| VSX Cluster | 2-Member Active-Active + Multi-chassis Link Aggregation (MC LAG) |
| Zero-Service Disruption | รองรับ - Planned and Unplanned Control-Plane Events |
| NAE / TSDB / Automation | |
| NAE | Aruba Network Analytics Engine - Real-time Monitoring + Automated Troubleshooting + Trend Analysis + Anomaly Detection + Predict Future Capacity |
| TSDB | Time Series Database - Store Configuration + Operational State + REST API Access |
| Automation | Python Scripting, REST APIs, Ansible |
| Process Re-Startability | รองรับ Individual Process Re-Startability + Process Re-Upgrades |
| QoS / Security / Management | |
| QoS | CoS (802.1p), ToS, DSCP, sFlow + Advanced QoS |
| Authentication | Local User Roles, 802.1X, MAC Authentication, RADIUS, TACACS+ |
| Cloud Management | HPE Aruba Networking Central (Cloud + On-Premise) + Aruba CX Mobile App + Aruba NetEdit + Switch Multi-Edit Software + AirWave |
| SNMP | SNMP v2c/v3 + RMON |
| Web GUI / CLI / REST API | รองรับครบ + Python / Ansible |
| ZTP | Zero-Touch Provisioning |
| Power Supply (Hot-Swappable Redundant) | |
| PSU Type | 2 x Hot-Swappable AC Power Supply Field-Replaceable (Bundle รวม - X472 x 2) |
| PSU Capacity | รองรับสูงสุด 2 PSU |
| PSU Redundancy | 1+1 Active-Standby Redundancy |
| Input Voltage | 100-240V AC (Universal) |
| Power Cord | รวมในชุด (US Power Cord) |
| Fan / Cooling (Hot-Swappable Redundant) | |
| Fan Tray | 5 x Hot-Swappable Field-Replaceable Fan (Bundle รวม - สูงกว่ามาตรฐาน) |
| Fan Capacity | รองรับสูงสุด 5 Fan |
| Fan Redundancy | N+1 Redundancy |
| Compliant Standards | |
| IEEE Standards | 802.3, 802.1D, 802.1Q, 802.3ab, 802.1p, 802.3x, 802.3ad, 802.1w, 802.1s, 802.3az, 802.3ae (10GbE), 802.3an (10GBASE-T), 802.3ba (40GbE) |
| Safety | EN 62368-1, UL 62368-1, CSA C22.2 No. 62368-1, IEC 62368-1 |
| Compliance | TAA Compliant (Trade Agreements Act) |
| Physical Specifications | |
| Form Factor | 1U Rack-Mountable (Compact 1U) |
| Rack Mounting | EIA Standard 19-inch Rack หรือ Equipment Cabinet (Hardware Included) + Horizontal Surface Mounting |
| Package Contents (Bundle) | |
| In the Box | JL581A CX 8320 Switch x 1 (Base Switch), 2 x Hot-Swappable AC PSU (X472 x 2), 5 x Hot-Swappable Field-Replaceable Fan, 2-Post Rack-Mount Kit (EIA Standard 19-inch), AC Power Cord (US), Quick Start Guide, Warranty Card Required (แยกซื้อ): QSFP+ Transceivers (40G Fiber + DAC/AOC + Breakout Cable 4x10G), Cat5e/Cat6/Cat6a Cable สำหรับ 10GBASE-T, 4-Post Rack-Mount Kit (Optional), Aruba Central License (Optional) |
| Warranty | |
| Warranty Policy | HPE Limited Lifetime Warranty (รับประกันตลอดอายุการใช้งาน) + Switch Software Embedded - No Software License Fees + No Subscription Required |
| Software Updates | ฟรี Software Updates ตลอดอายุการใช้งาน |
